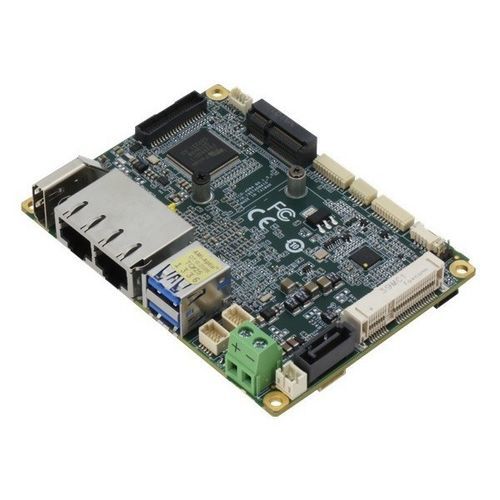

Pico-ITX single-board computer PICO-ADN4 REV.B

Intel® Core™ i3-N305Intel Atom® x7425EIntel® Processor N97

Pico-ITX Board with Intel Atom® x7000E Series, Intel® Processor N-series, and Intel® Core™ i3 Processor N-series - DDR5 4800 SODIMM, up to 16GB - HDMI 1.4 x 1, eDP 1.4b/LVDS x 1 - 2.5GbE x 1, 1GbE x 1 - Full-size mSATA/mPCIe x 1, M.2 2230 E-Key x 1 - USB 3.2 Gen 2 x 2 ports, USB 2.0 x 4 - RS-232/422/485 x 2, RS-232 x 2 - TPM 2.0, SATA 6Gb/s, 4-bit GPIO, SMBUS/I2C - DC 9 ~ 36V input (Optional via power adapter card) Optional Accessories: - Part Number: 170X000287, Description: Front Panel cable.10cm, Qty: 1 - Part Number: 170X000317, Description: Quad COM cable.15cm, Qty: 1 - Part Number: 170010010D, Description: Dual USB2.0 cable.10cm, Qty: 2 - Part Number: 170X000593, Description: SATA CABLE.15cm, Qty: 1 - Part Number: 1702150155, Description: SATA power cable.15cm, Qty: 1 - Part Number: 170X000779, Description: Audio cable.25cm, Qty: 1 - Part Number: 1702030200, Description: Power cable (Phoenix type to DC Jack).20cm, Qty: 1 - Part Number: PICO-ASL4-FAN01, Description: Cooler.100*72*25.5mm.for PICO-ASL4 Rev.B/PICO-ADN4 Rev.B, Qty: 1 - Part Number: PICO-ASL4-HSK01, Description: Heat Sink.100*72*25.5mm (Heat spreader-less, all in one HSK).for PICO-ASL4 Rev.B/PICO-ADN4 Rev.B, Qty: 1 - Part Number: PICO-ASL4-HSP01, Description: Heat Spreader.AL.100*72*12mm.for PICO-ASL4 Rev.B/PICO-ADN4 Rev.B, Qty: 1 - Part Number: PER-P30D-A10-0001, Description: 120W, DC-DC Converter, 9~36V input, 12V output, Rev A1.0, 30 x 72mm, Qty: 1 Technical Specifications: - Form Factor: Pico-ITX - Supported Processors: Intel Atom® x7000E Series, Intel® Processor N-series, Intel® Core™ i3 Processor N-series - Memory: DDR5 4800 SODIMM, up to 16GB - Display Outputs: HDMI 1.4 x 1, eDP 1.4b/LVDS x 1 - Ethernet: 2.5GbE x 1, 1GbE x 1 - Expansion: Full-size mSATA/mPCIe x 1, M.2 2230 E-Key x 1 - USB: USB 3.2 Gen 2 x 2 ports, USB 2.0 x 4 - Serial: RS-232/422/485 x 2, RS-232 x 2 - Security: TPM 2.0 - Storage: SATA 6Gb/s - GPIO: 4-bit - Other I/O: SMBUS/I2C - Power Input: DC 9 ~ 36V (Optional via power adapter card)
