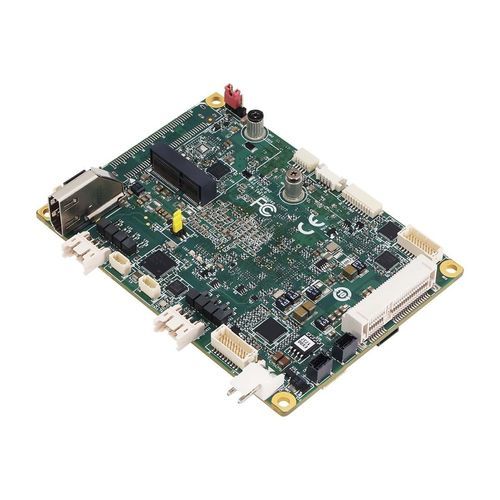

Pico-ITX single-board computer PICO-ADN2

Intel® Processor N-seriesSATA3M.2 Key E

Overview
Compact Pico-ITX board PICO-ADN2 with Intel® Processor N-series/Core™ Processor N-series SoC, onboard LPDDR5 up to 16GB. Designed for industrial embedded applications, IoT gateways, digital signage and edge computing where small form factor and diverse I/O are required.

Key features

• Intel® Processor N-series SoC
• Onboard LPDDR5, up to 16GB
• 1GbE x 2
• HDMI 1.4 + LVDS
• M.2 2230 E-Key x 1 (PCIe 3.0 x1 + USB 2.0)
• USB 3.2 Gen 1 x 2 + USB 2.0 x 2
• RS-232/422/485 x 2
• TPM, GPIO 4-bit
• SATA 6Gb/s x 1
• SMBus/I2C (Default: SMBus)
• Intel® AMT Support

Technical specifications

• Model: PICO-ADN2
• Form factor: Pico-ITX
• Processor family: Intel® Processor N-series / Core™ Processor N-series SoC
• Memory: Onboard LPDDR5, up to 16GB
• Ethernet: 1GbE x 2
• Display outputs: HDMI 1.4 and LVDS
• Storage expansion: M.2 2230 E-Key (PCIe 3.0 x1 + USB 2.0)
• USB: USB 3.2 Gen 1 x 2, USB 2.0 x 2
• Serial ports: RS-232/422/485 x 2
• Security / I/O: TPM, GPIO 4-bit
• SATA: SATA 6Gb/s x 1
• Bus: SMBus/I2C (Default: SMBus)
• Manageability: Intel® AMT Support
