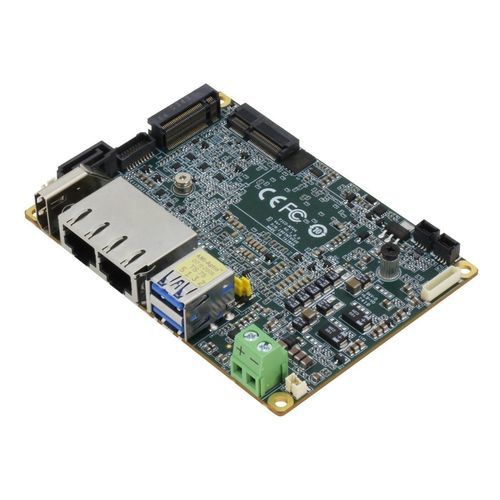

Pico-ITX single-board computer PICO-ARU4 series

Intel® Core™ UltraMini PCIeSATA

• Intel® Core™ Ultra Processors (Series 2) SoC • Onboard LPDDR5, up to 32GB • 2.5GbE + 1GbE • HDMI 1.4 + eDP 1.4 • M.2 2280 M-Key x 1 (PCIe 4.0 [x4]/SATA) • M.2 2230 E-Key x 1 (PCIe 4.0 [x1] + USB 2.0) • USB 3.2 Gen 2 x 2 + USB 2.0 x 2 • RS-232/422/485 x 2 • TPM, GPIO 4-bit, SATA 6Gb/s x 1 • SMBus/I2C (Default: SMBus) • Intel® AMT Support Optional Accessories: - Part Number: 170X000603, Description: Front Panel cable.10cm, Qty: 1 - Part Number: 170X000231, Description: Dual COM cable.30cm, Qty: 1 - Part Number: 170X000880, Description: Single USB 2.0 lockable cable.20cm, Qty: 2 - Part Number: 1709070500, Description: SATA cable.50cm, Qty: 1 - Part Number: 1702150155, Description: SATA power cable.15cm, Qty: 1 - Part Number: 1702030200, Description: Power cable (Phoenix type to DC Jack).20cm, Qty: 1 - Part Number: PICO-MTU4-FAN01, Description: Cooler.100*72*14mm.5200rpm.for PICO-MTU4, Qty: 1 - Part Number: PER-P30D-A11-0001, Description: 120W, DC-DC Converter, 9~36V input, 12V output, Rev A1.1, 30 x 72mm, Qty: 1 Technical Specifications / Features: • Intel® Core™ Ultra Processors (Series 2) SoC • Onboard LPDDR5, up to 32GB • 2.5GbE + 1GbE Ethernet • HDMI 1.4 + eDP 1.4 display outputs • M.2 2280 M-Key x 1 (PCIe 4.0 [x4]/SATA) • M.2 2230 E-Key x 1 (PCIe 4.0 [x1] + USB 2.0) • USB 3.2 Gen 2 x 2, USB 2.0 x 2 • RS-232/422/485 x 2 serial ports • TPM, GPIO 4-bit, SATA 6Gb/s x 1 • SMBus/I2C (Default: SMBus) • Intel® AMT Support
