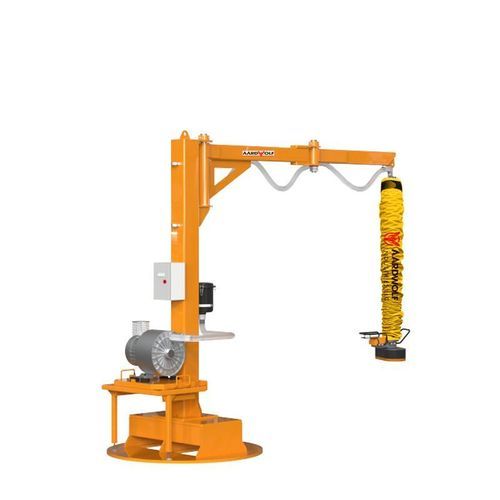

Wooden sheet tube lifter AVTL-CF3

for cardboard boxesfor slabs

Overview
The Aardwolf AVTL-CF3 Vacuum Tube Lifter is a mobile vacuum lifting solution designed for efficient handling of cartons, packs and slabs up to 60 kg (132 lb). It pairs a high-performance vacuum pump with an ergonomic control head and a foldable two-joint crane to facilitate safe, repeatable lifting operations in industrial environments.

Key features

• High-performance vacuum pump ensuring rapid evacuation and energy-efficient operation.
• Versatile operation modes: manual control and remote operation for flexible workflow integration.
• Ergonomic control head with top gate valve for accurate lift and release control.
• Foldable two-joint crane for compact storage and improved maneuverability.
• Movable counter base for stable positioning and continuous operation.

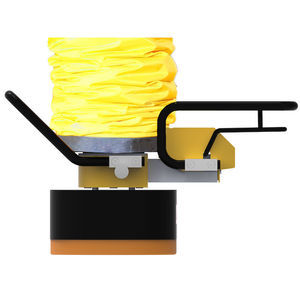

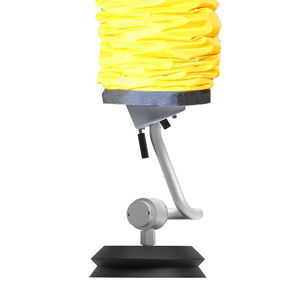

• Interchangeable pad system with plunger knobs for quick adaptation to different load types.

Specifications
Metric | Imperial
Mobile crane W.L.L: 100 kg | 220 lb
Crane height: 2552 mm | 100.5"
Arm height: 2431 mm | 91.8"
Tube size: 160 mm | 6.3"
Net weight: 980 kg | 2160.53 lbs
Gross weight: 1080 kg | 2380.99 lbs
Packaging dimensions: 2550 x W.1080 x H.1610 mm | 100.4" x 42.5" x 63.4"

Technical details

• Product Code: AVTL-CF3
• Brand: Aardwolf
• Maximum handled material weight (general): up to 60 kg (132 lb)
• Mobile crane W.L.L: 100 kg (220 lb)
• Crane height: 2552 mm (100.5")
• Arm height: 2431 mm (91.8")
• Tube size: 160 mm (6.3")
• Net weight: 980 kg (2160.53 lbs)
• Gross weight: 1080 kg (2380.99 lbs)
• Packaging dimensions: 2550 x W.1080 x H.1610 mm (approx. 100.4" x 42.5" x 63.4")

Applications

• Handling and positioning of cartons and packaged goods in production lines and warehouses.
• Transfer of slabs and flat materials in manufacturing or finishing operations.
• Loading and unloading tasks where precise pick-and-place is required.
