Big bag vacuum lifting device AVTL2

for boxesfixedaluminum

General

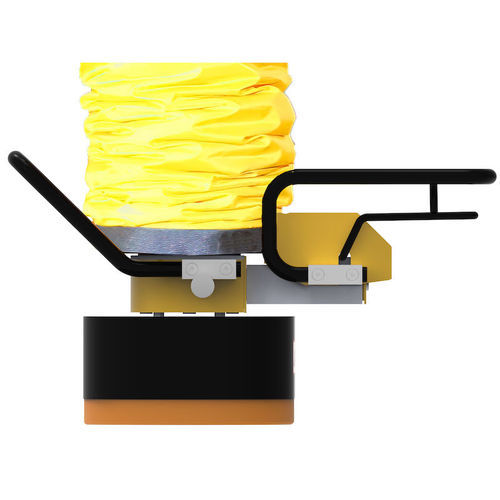

The AVTL2 Vacuum Tube Lifter by Aardwolf is a vacuum-assisted handling solution for lifting bags, sacks and packaged goods. Designed for industrial environments, the unit lifts up to 60 kg using a vacuum head with an oval pad and is mounted on a 100 kg capacity fixed crane. The flexible boom and single-hand grip with ambidextrous control enable precise positioning while reducing operator strain and improving safety.

Features

• Fast, easy-to-handle vacuum lifter for repetitive bag and carton handling.
• Ergonomic single-hand grip and ambidextrous control handle for left- or right-handed operation.
• Optimized for quick transfer of cartons, sacks and packaged products.
• Multiple vacuum head options available (three variants) to suit different load profiles.

Fix crane information (Specifications table)
Metric | Imperial
Fix crane capacity: 100 kg | 220 lb
Height of the crane: 3151 mm | 124"
Tube size of the crane: 180 mm | 7.1"
The aluminum frame length of the crane: 3260 mm | 128.3"
Lifting capacity of the vacuum head (rectangular/oval pad): 60 kg | 132 lb
Vacuum pump flow: 120 m3/hour | -

Optional vacuum head (round pad)
Metric | Imperial
Working load limit: 35 kg | 77 lb
Vacuum pump flow: 40–48 m3/hour | -

Technical specifications

• Model: AVTL2
• Brand: Aardwolf
• Fix crane capacity: 100 kg
• Height of the crane: 3151 mm (124")
• Crane tube size: 180 mm (7.1")
• Aluminum frame length: 3260 mm (128.3")
• Lifting capacity (vacuum head rectangular/oval pad): 60 kg (132 lb)
• Optional round pad working load limit: 35 kg (77 lb)
• Vacuum pump flow (rectangular pad): 120 m3/hour
• Vacuum pump flow (optional round pad): 40–48 m3/hour
• Single-hand grip with ambidextrous control for precise manoeuvring
• Multiple vacuum head options (three choices)
