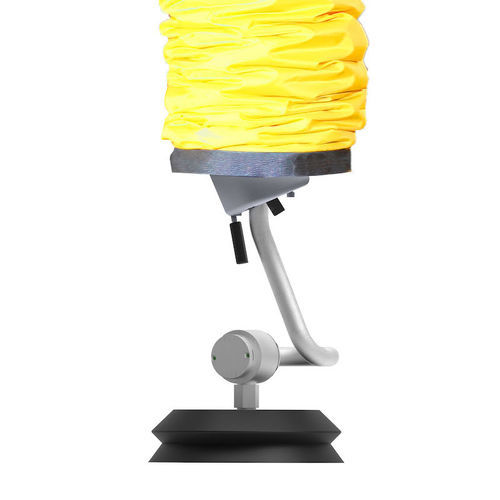

Box vacuum lifting device AVTL1

rotarypivoting

General
The Aardwolf AVTL1 mobile vacuum tube lifter is designed for handling carton boxes and similar packaged goods in industrial environments. It supports a vacuum head lifting capacity of 78 kg (172 lb) and integrates with a mobile crane for flexible positioning and safer load handling.

Features

• High-performance vacuum pump: provides a flow rate of 87–105 m3/hour for consistent handling performance.
• Versatile operation modes: manual and remote control to adapt to varied workflows.
• Single control head: enables one-handed operation for efficient handling.
• 270-degree manual rotation: wide floor coverage for flexible load placement.
• Movable counter base: facilitates positioning and stability during lifting tasks.
• Flexible pad options: plunger knobs allow rapid switching between pads to suit different loads.

Specifications
Mobile crane information:
Metric - Imperial
Mobile crane capacity: 100 kg - 220 lb
Crane height: 3150 mm - 124"
Tube size of the crane: 120 mm - 4.7"
Arm length: 3050 mm - 120"
Lifting capacity of the vacuum head: 78 kg - 172 lb
Vacuum pump flow: 87–105 m3/hour

Technical specifications

• Product Code: AVTL1
• Intended primary load: Carton boxes
• Mobile crane capacity: 100 kg (220 lb)
• Crane height: 3150 mm (124")
• Tube diameter (tube size of the crane): 120 mm (4.7")
• Arm length: 3050 mm (120")
• Lifting capacity of the vacuum head: 78 kg (172 lb)
• Vacuum pump flow: 87–105 m3/hour
• Operation modes: Manual and remote
• Rotation coverage: 270-degree manual rotation
• Control: Single control head for one-handed operation
• Base: Movable counter base
• Pad system: Flexible pad options with plunger knobs
