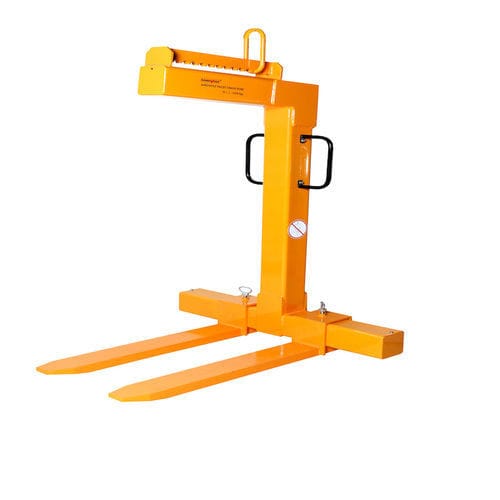

Crane pallet fork APCF

for palletfor pallet handlingsteel

General
Aardwolf Pallet Crane Fork provides a flexible lifting solution for loading, unloading, handling and transporting heavy, palletized or packaged materials within industrial production areas. It is a crane attachment engineered to enable overhead lifting where forklifts cannot operate, such as narrow aisles or restricted zones, offering a 2500 kg working load limit for pallet handling.

Features

• High-strength welded steel construction for structural integrity.
• Efficient and secure transfer of palletized items across production zones.
• Compatible with overhead cranes to expand material-handling options.

Specifications
Metric | Imperial
Working load limit: 2500 kg | 5511 lb
Net weight: 242 kg | 534 lb
Gross weight: 258 kg | 569 lb
Packaging dimensions: L.1220 x W.1190 x H.1930 mm | 48" x 46.9" x 76"

Model / Technical specifications

• Model: APCF
• Working load limit: 2500 kg (5511 lb)
• Net weight: 242 kg (534 lb)
• Gross weight: 258 kg (569 lb)
• Packaging dimensions: L1220 x W1190 x H1930 mm (48" x 46.9" x 76")
• Construction: high-strength welded steel
• Application: crane attachment for handling palletized and packaged goods; suitable for narrow aisles or areas inaccessible to forklifts
