Sheet lifting beam ASB-5Tfor flat loadsfor slabsglass plate
Add to favorites
Compare this product
Characteristics
- Product applications
- for sheets, for flat loads, for slabs, glass plate
- Type
- adjustable
- Options
- pivoting, 2 lifting points adjustable
- Carrying capacity
Min.: 5,000 kg
(11,023 lb)Max.: 5,000 kg
(11,023 lb)- Total width
Min.: 2,000 mm
(78.74 in)Max.: 2,000 mm
(78.74 in)- Weight
Min.: 104.7 kg
(230.82 lb)Max.: 104.7 kg
(230.82 lb)
Description
General

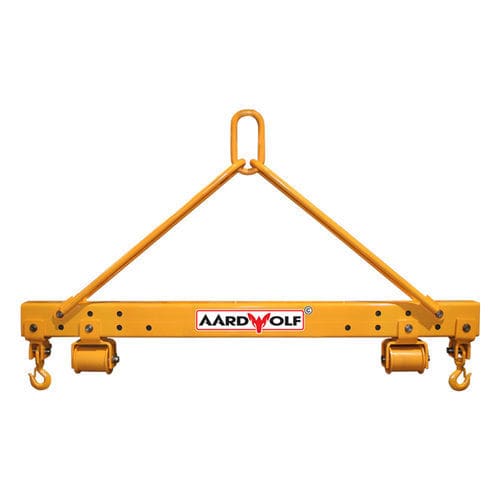

Designed for the stone and glass industries, the Spreader Beam ASB-5T is used with endless slings to turn, roll and stabilise large flat loads. Crowned aluminium rollers support the slings and facilitate rotation of the load in the sling. Rollers accept slings up to 90 mm wide. Swivel hooks can replace rollers when required. Overall width: 2000 mm. Adjustable lifting points allow adaptation to different load configurations.
Features
Specifications
Metric | Imperial
Working load limit: 5000 kg | 11023 lb
Net weight: 104.7 kg | 231 lb
Gross weight: 105 kg | 232 lb
Packaging dimensions: L.2040 x W.150 x H.350 mm | 80.3" x 5.9" x 13.8"
Technical specifications
Designed for the stone and glass industries, the Spreader Beam ASB-5T is used with endless slings to turn, roll and stabilise large flat loads. Crowned aluminium rollers support the slings and facilitate rotation of the load in the sling. Rollers accept slings up to 90 mm wide. Swivel hooks can replace rollers when required. Overall width: 2000 mm. Adjustable lifting points allow adaptation to different load configurations.
Features
- Adjustable lifting points for load balancing
- Suitable for wide and unbalanced loads
- Rollers for easier turning of stone and glass panels
- Swivel hooks available as alternative to rollers
Specifications
Metric | Imperial
Working load limit: 5000 kg | 11023 lb
Net weight: 104.7 kg | 231 lb
Gross weight: 105 kg | 232 lb
Packaging dimensions: L.2040 x W.150 x H.350 mm | 80.3" x 5.9" x 13.8"
Technical specifications
- Product Code: ASB-5T
- Working load limit: 5000 kg (11023 lb)
- Net weight: 104.7 kg (231 lb)
- Gross weight: 105 kg (232 lb)
- Packaging dimensions: 2040 x 150 x 350 mm (80.3" x 5.9" x 13.8")
- Rollers accommodate slings up to 90 mm wide
- Overall width: 2000 mm
- Swivel hooks can be used in place of rollers
- Adjustable lifting points
