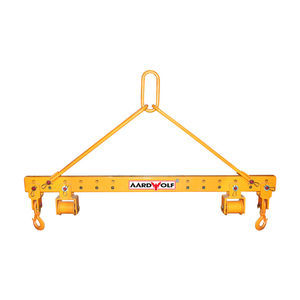

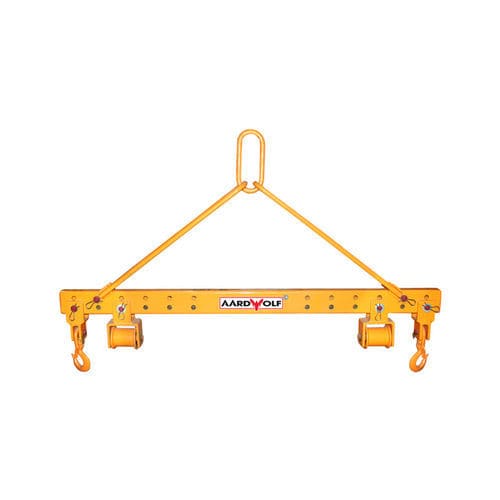

Stone slab lifting beam ASB-2.5T

glass platefor slabsadjustable

General
Designed for the stone and glass industries, the ASB-2.5T spreader beam is intended for lifting, rotating and rolling slabs and panels when used with endless slings. The slings ride on crowned aluminum rollers to facilitate turning the load in the sling. Rollers accept slings up to 90 mm wide. Swivel hooks can be fitted in place of rollers. Model: ASB-2.5T.

Features

• Adjustable lifting points to adapt to different load geometries
• Handles wide and unbalanced loads safely when used per instructions
• Includes swivel hooks (can be used in place of rollers) and compatibility with endless slings

Specifications
Working load limit (WLL): 2500 kg (5511 lb)
Net weight: 46 kg (101 lb)
Gross weight: 46.2 kg (102 lb)
Packaging dimensions: L 1620 x W 120 x H 280 mm (63.8" x 4.7" x 11")
Overall width: 1620 mm
Roller compatibility: up to 90 mm wide slings

Technical specifications

• Model: ASB-2.5T
• Intended application: stone and glass slab/panel handling, rolling and rotating in slings
• Suspension system: endless slings on crowned aluminum rollers (swivel hooks optional)
• Working load limit (WLL): 2500 kg
• Net weight: 46 kg
• Gross weight: 46.2 kg
• Packaging dimensions: 1620 x 120 x 280 mm
• Overall width: 1620 mm
• Roller capacity: supports slings up to 90 mm wide
