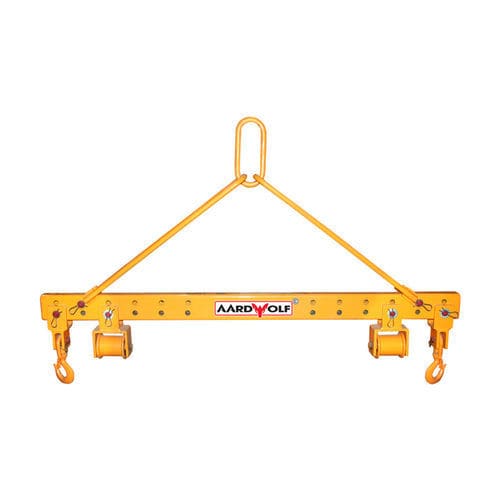

Glass plate lifting beam ASB-3.5T

for stone slabsadjustableload rotating

General
Designed for the stone and glass industries. The spreader beam is used with endless slings to allow controlled rolling and turning of stone or glass panels. Slings run on crowned aluminum rollers to facilitate rotation; rollers accept slings up to 90 mm wide. Swivel hooks can replace rollers for alternative suspension. Overall width: 2000 mm.

Features

• Adjustable lifting points for load balancing
• Handles wide and unbalanced loads
• Includes swivel hooks; chains available as option

Specifications
Working load limit: 3500 kg — 7716 lb
Net weight: 73 kg — 161 lb
Gross weight: 74 kg — 163 lb
Packaging dimensions: 2020 x 150 x 280 mm — 79.5" x 5.9" x 11"

Technical details

• Model: ASB-3.5T
• Intended use: stone and glass handling where rolling/turning is required
• Slings suspended on crowned aluminum rollers
• Rollers accept slings up to 90 mm wide
• Adjustable lifting points
• Swivel hooks can replace rollers
• Overall width: 2000 mm
• Packaging dimensions: 2020 x 150 x 280 mm
