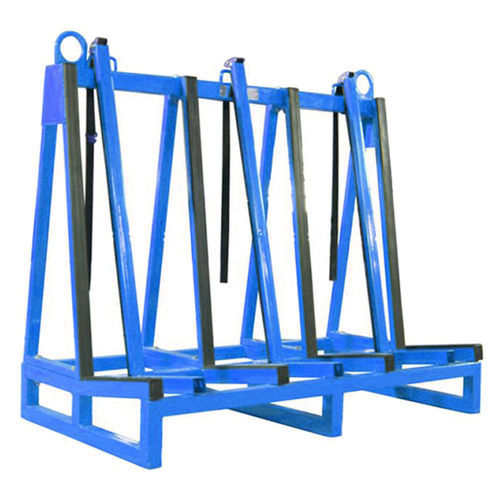

Transport frame TFDFH2

General
Top frame designed for transporting and storing slab materials inside factories and for delivering material to building sites. Rubber-topped frame surfaces protect slab edges during handling. Designed to fit inside a standard pick-up truck and to be placed using a forklift or crane. Compatible with DFH 200 & DFH 400 assemblies. Product code TFDFH2.

Specifications
Metric | Imperial
Width of slab storage base area on each side: 304 mm | 12"
Working load limit per side: 375 kg | 827 lb
Total working load limit: 750 kg | 1653 lb
Net weight: 44.8 kg | 98.8 lb
Gross weight: 45 kg | 99.2 lb

Features / Technical specifications

• Product code: TFDFH2
• Compatible models: DFH 200 & DFH 400
• Width of slab storage base area on each side: 304 mm (12")
• Working load limit per side: 375 kg (827 lb)
• Total working load limit: 750 kg (1653 lb)
• Net weight: 44.8 kg (98.8 lb)
• Gross weight: 45 kg (99.2 lb)
• Rubber-topped frame surfaces for edge protection
• Designed to fit inside a standard pick-up truck
• Can be placed on truck with a forklift or crane
