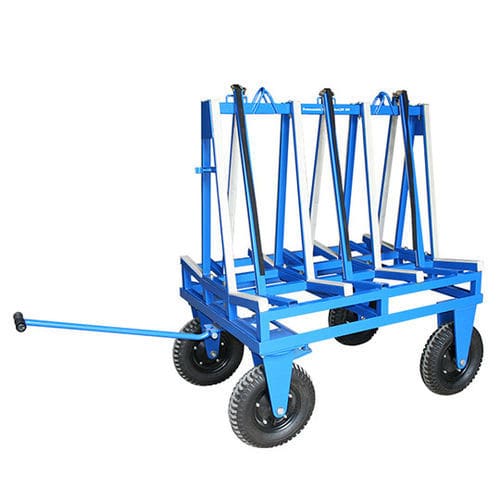

Steel storage rack DFF400

Overview
For storing and transporting finished slab material. Suitable for moving and storing slabs within a factory or for transporting slabs to construction sites. Common workflow: keep two 'A' frames per base (one on the truck, one in the factory) and swap frames on return. Frames can be loaded onto vehicles using a forklift or an overhead crane.

Features

• Stable, safe steel structure for material transport
• Contact surfaces covered with a rubber layer to protect slabs
• Two hook points for overhead crane attachment
• Protruding handle for manual positioning and handling

Specifications
Metric | Imperial
Width of slab storage base area on each side: 300 mm | 11.8 in
Working load limit per side: 500 kg | 1102 lb
Total working load limit: 1000 kg | 2204 lb
Net weight: 176 kg | 388 lb
Gross weight: 197 kg | 434 lb
Packing dimensions: 1350 x 1060 x 470 mm | 53.1 x 41.7 x 18.5 in

Technical details

• Model: DFF 400
• Main use: slab storage and transport
• Handling methods: compatible with forklift and overhead crane
• Protective rubber coating on contact zones to minimise damage
