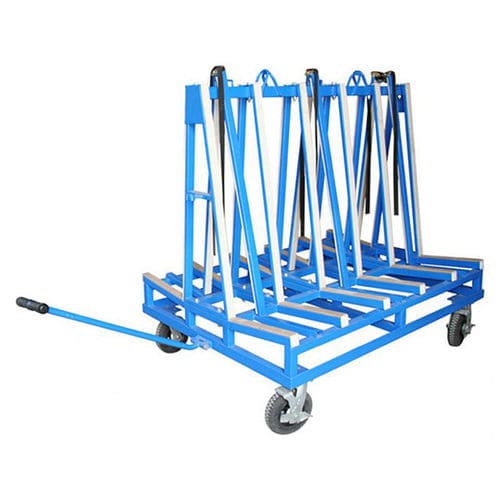

Transport frame DFF1500PC

General
Intended for transporting and storing slab material within a factory or for moving material to construction sites. Frame surfaces are fitted with rubber protection. Heavy-duty wheels allow easy maneuvering of a fully loaded frame in workshops and on sites. The frame fits inside a standard pick-up truck and can be loaded onto a truck by forklift or crane.

Features

• Sturdy structure designed to eliminate the risk of slab tipping.
• Slabs rest on rubber profiles and are secured with 6 adjustable locking bars.
• Six locking bars per frame are mounted in slotted holes on the bottom.
• Frame includes 2 hooking points for lifting by an overhead crane.
• Built-in brackets on all underside sides for forklift handling.
• Powder-coat paint finish.

Options
Frames can be hot-dip galvanized and finished on request.

Specifications
Metric - Imperial
Width of slab storage base area on each side: 361 mm - 14.2"
Working load limit per side: 500 kg - 1102 lb
Total working load limit: 1000 kg - 2204 lb
Net weight: 127.5 kg - 281 lb
Gross weight: 128 kg - 282 lb
Packaging dimension: L.1560xW.1135xH.230 mm - L.61.4"xW.44.7"xH.9"

Technical details

• Model: DFF1500PC
• Width of slab storage base area on each side: 361 mm (14.2")
• Working load limit per side: 500 kg (1102 lb)
• Total working load limit: 1000 kg (2204 lb)
• Net weight: 127.5 kg (281 lb)
• Gross weight: 128 kg (282 lb)
• Packaging dimension: 1560 x 1135 x 230 mm (61.4 x 44.7 x 9 in)
• Slabs secured with 6 adjustable locking bars mounted in slotted holes
• 2 hooking points for overhead crane lifting
• Frame surfaces fitted with rubber profiles for slab protection
