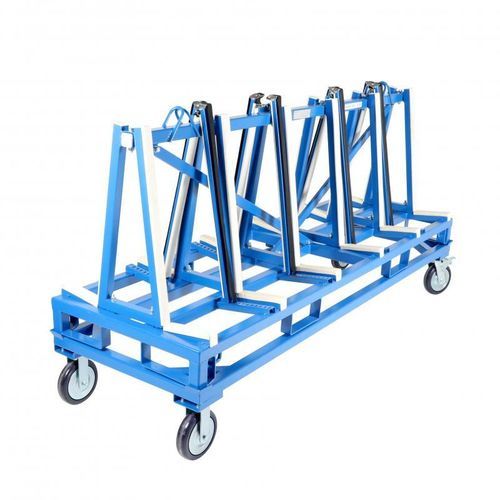

Handling rack DAF2350PC

General
Designed for safe transport and storage of slabs and heavy materials in factories and on construction sites. Rubber protection is provided on frame support surfaces. Heavy-duty wheels enable manoeuvring of a fully loaded frame in workshops and on site. Fits inside a standard pick-up truck and can be loaded/unloaded by forklift or crane.

Features

• Sturdy structure designed to eliminate the risk of slab tipping.
• Slabs rest on specially profiled rubber supports and are secured with eight adjustable locking bars.
• Eight locking bars are mounted in slotted holes on the base for secure fixation.
• Two hooking points for handling with an overhead crane.
• Built-in brackets on all bottom sides for forklift transport.
• Powder-coat paint finish for corrosion protection.

Options
Frames can be hot-dip galvanized and finished on request.

Specifications
Metric (mm-kg) / Imperial (in-lb)
Width of slab storage base area on each side: 212 mm / 8.3 in
Working load limit per side: 750 kg / 1653 lb
Total working load limit: 1500 kg / 3307 lb
Net weight: 177.5 kg / 391 lb
Gross weight: 178 kg / 392 lb
Packaging dimension: L 2390 x W 800 x H 280 mm / L 94 x W 31.5 x H 11 in

Characteristics / technical specifications

• Product Code: DAF2350PC
• Width of slab storage base area on each side: 212 mm (8.3 in)
• Working load limit per side: 750 kg (1653 lb)
• Total working load limit: 1500 kg (3307 lb)
• Net weight: 177.5 kg (391 lb)
• Gross weight: 178 kg (392 lb)
• Packaging dimension: 2390 x 800 x 280 mm (94 x 31.5 x 11 in)
• Eight adjustable locking bars per frame mounted in slotted base holes
• Special rubber profiles on support surfaces for slab protection
• Two crane hooking points and forklift brackets on underside
• Powder-coat finish; hot-dip galvanizing available on request
