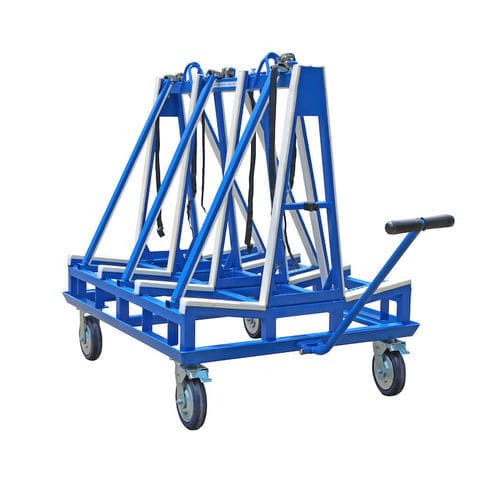

Transport frame DFF200

General description
The Aardwolf Demountable Frame (DFF200) is a modular transport frame designed for secure storage and transport of slabs, stone and other sheet materials between factories and job sites. The system allows interchange of top and base frames between trucks and factory bases to maintain workflow. The frame is configured for handling by both forklifts and overhead cranes.

Key features

• Secure handling: Designed to secure stone, glass and other sheet materials during storage and transport.
• Protective rubber layer: Surface protection to minimise contact damage.
• Dual hooking points: Two crane hook points for safe overhead lifting.
• Stick-out handle: Handle for manual manoeuvring and alignment during loading/unloading.

Note
Top and base frames can be ordered separately to fit operational needs.

Specifications
Metric — Imperial
Width of slab storage base area on each side: 300 mm — 11.8 in
Working load limit per side: 500 kg — 1102 lb
Total working load limit: 1000 kg — 2204 lb
Net weight: 102 kg — 225 lb
Gross weight: 103 kg — 227 lb
Packaging dimension: L.1300 W.1020 H.240 mm — L.51.2 in W.40.2 in H.9.4 in

Applications & benefits

• Multi-purpose: Suitable for stone, glass, metal and other sheet materials.
• Adaptable logistics: Works in factories, warehouses and construction sites.
• Compact storage: Can be disassembled for space-efficient storage.
• Handling flexibility: Compatible with both crane and forklift operations.

Technical data

• Brand: Aardwolf
• Product code: DFF200
• Model / commercial name: Demountable Frame
• Width of slab storage base area on each side: 300 mm
• Working load limit per side: 500 kg
• Total working load limit: 1000 kg
• Net weight: 102 kg
• Gross weight: 103 kg
• Packaging dimension: L.1300 mm × W.1020 mm × H.240 mm (L.51.2 in × W.40.2 in × H.9.4 in)
• Protective rubber layer to prevent surface damage
• Dual hooking points for overhead crane attachment
• Designed for forklift and crane handling
• Modular system: top and base frames can be ordered separately
