Transport cart Load Master

handlingmetal

General

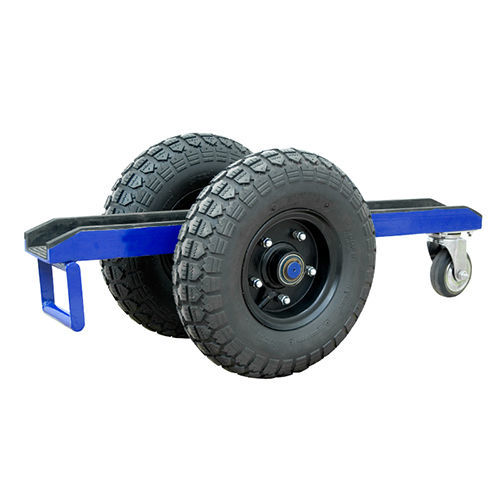

Long slab-carrying trolley designed for safe handling and transport of long, cut-to-size stone, metal or composite slabs on constrained job sites. Offset axle and pneumatic swivel caster ensure a tight turning radius and improved maneuverability. Body lined with vulcanized rubber to protect finished edges and prevent chipping.

Key features

• Rubber-padded channel: vulcanized rubber on bottom, sides and top edges
• Wheels: 2 × 350 mm pneumatic rubber wheels + 1 swivel caster
• Offset axle distributes load between wheels and caster
• Narrow width and compact footprint for confined spaces

Specifications

• Product code: ALM01
• Working load limit (WLL): 400 kg (882 lb)
• Body channel: 858 × 80 mm
• Support plate channel: 858 × 80 × 41 mm
• Rubber wheel diameter: 350 mm (13.8")
• Net weight: 15 kg (33 lb)
• Gross weight: 17 kg (37 lb)
• Packaging dimensions: L 860 × W 390 × H 210 mm (L 34" × W 15.4" × H 8.3")

Applications

• Handling small drops, cut-to-size slabs and finished panels
• On-site movement where tight turning and narrow access are required
• Suitable for stone fabricators, metal workshops and composite manufacturers
