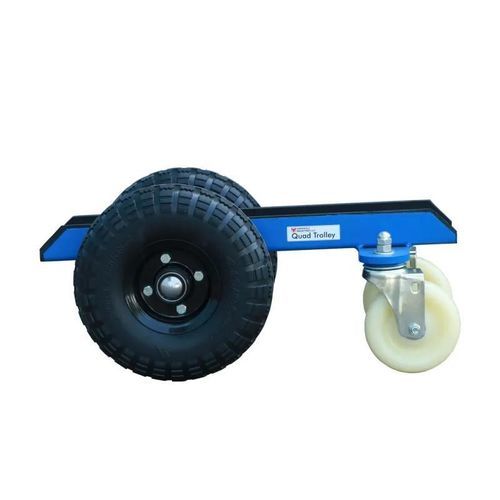

Adjustable hand truck AQT01

for transportationhandling

General
Four-wheel trolley for transporting slabs and heavy panels. Vulcanized rubber padding on the bottom, sides and upper edges of the support channel prevents chipping of finished edges. Designed for industrial handling where stability and edge protection are required.

Features

• 2 solid rubber rear wheels (265 mm)
• 2 swivel front wheels for improved maneuverability
• Vulcanized rubber padding on bottom, sides and top edges of the support channel

Specifications
Metric (mm-kg) | Imperial (inch-lb)
Rubber wheel diameter: 265 mm | 10.4"
Support plate channel: 550 x 80 x 41 mm | 21.7" x 3" x 1.6"
Working load limit (WLL): 360 kg | 793 lb
Net weight: 16.6 kg | 36.6 lb
Gross weight: 17.5 kg | 38.6 lb
Packaging dimensions: L 560 x W 270 x H 290 mm | L 22" x W 10.6" x H 11.4"

Technical specifications

• Model / product code: AQT01
• Type: Four-wheel slab trolley with rubber-padded support channel
• Wheels: 2 solid rubber rear wheels, 2 swivel front wheels
• Rubber wheel diameter: 265 mm (10.4")
• Support plate channel: 550 x 80 x 41 mm (21.7" x 3" x 1.6")
• Working load limit (WLL): 360 kg (793 lb)
• Net weight: 16.6 kg (36.6 lb)
• Gross weight: 17.5 kg (38.6 lb)
• Packaging dimensions: 560 x 270 x 290 mm (22 x 10.6 x 11.4")
• Protective padding: Vulcanized rubber on bottom, sides and top edges to prevent chipping
