Handling hand truck ABT01

for transportation

Overview

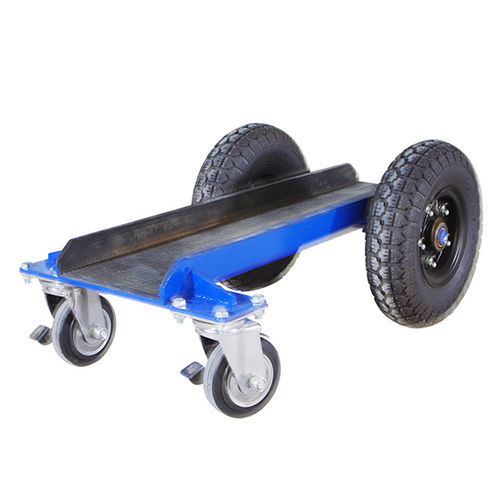

Broad trolley designed for handling wide elements such as door frames and large panels. Rear pneumatic rubber wheels provide shock absorption; support plate edges are protected with vulcanized rubber to prevent chipping of finished parts.

Key features

• 2 pneumatic rubber tires at the rear (Ø 350 mm)
• 2 swivel wheels at the front for manoeuvrability
• Vulcanized rubber protection on bottom, sides and top edges of the support plate
• Working load limit: 450 kg

Technical specifications

• Wheel (rubber): 350 mm — 13.8 in
• Body dimensions: 350 x 95 mm — 13.8 x 3.7 in
• Support plate channel: 854 x 212 x 50 mm — 33.6 x 8.3 x 2 in
• Working load limit (WLL): 450 kg — 992 lb
• Net weight: 28 kg — 61.7 lb
• Gross weight: 29 kg — 64 lb
• Wheels: 2 pneumatic rear, 2 swivel front

Applications

• Transport of door frames, wide panels and long workpieces in workshops and sites
• Use where edge protection is required to avoid chipping finished surfaces
• Suitable for indoor and outdoor handling on even surfaces

Ordering information

• Brand: Aardwolf
• Model: ABT01
• Packaging: single unit, palletised
• Contact supplier for optional configurations and spare parts
