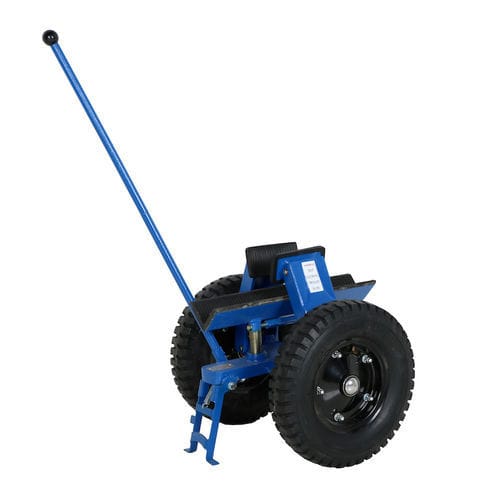

Adjustable hand truck SL85

lifting

General
The SL85 self-locking slab trolley provides automatic clamping to lift, secure and transport heavy slabs, panels and countertops on site or in workshops. Pneumatic rubber wheels deliver high traction for operations on flat and rough surfaces, facilitating safe and efficient handling.

Features

• Automatic self-locking clamp secures material without manual adjustment
• Rubber-padded clamping supports and base to protect surfaces
• Pneumatic rubber wheels for high grip on varied terrain
• Compact, maneuverable design for on-site handling

Specifications
Metric | Imperial
Grip range: 0 - 85 mm | 0 - 3.3"
Rubber wheel diameter: 400 mm | 15.7"
Support plate channel: 500 mm | 19.7"
Working load limit (WLL): 400 kg | 882 lb
Net weight: 26 kg | 57 lb
Gross weight: 28 kg | 62 lb
Packaging dimension: L.540xW.500xH.520 mm | L.21.3"xW.19.7"xH.20.5"

Technical specifications

• Model: SL85
• Grip range: 0 - 85 mm (0 - 3.3")
• Rubber wheel diameter: 400 mm (15.7")
• Support plate channel length: 500 mm (19.7")
• Working load limit (WLL): 400 kg (882 lb)
• Net weight: 26 kg (57 lb)
• Gross weight: 28 kg (62 lb)
• Packaging: 540 x 500 x 520 mm (21.3 x 19.7 x 20.5")
