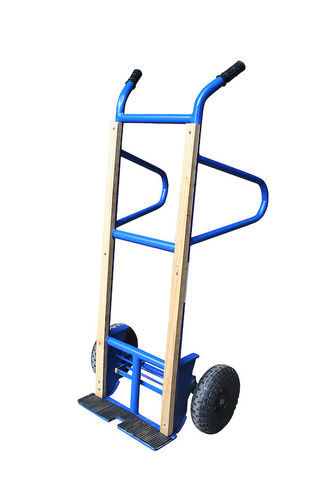

Transportation hand truck AHT750

handlingcratesteel

General
Robust steel frame, wooden carrying surface, rubber grips and rubber-coated toe plate. Pneumatic wheels Ø250×75 mm. Stationing supports. Designed for manual handling of loads up to 750 kg in industrial environments.

Applications

• Transport of crates, boxes and machinery parts in warehouses
• Use in logistics and maintenance operations
• Loading/unloading on site with uneven flooring thanks to pneumatic wheels

Specifications
Metric | Imperial
Height: 1260 mm | 49.6"
Track width: 580 mm | 22.8"
Toe plate: 420×80 mm | 16.5"×3.1"
Pneumatic wheel diameter: 250×75 mm | 9.8"×3"
Working load limit: 750 kg | 1653 lb
Net weight: 25 kg | 55 lb
Gross weight: 25.2 kg | 56 lb
Packaging dimensions: L1270×W580×H380 mm | L50"×W22.8"×H15"

Technical features

• Product code: AHT750
• Material: steel frame with wooden carrying surface
• Pneumatic wheels 250×75 mm for shock absorption
• Rubber-coated toe plate 420×80 mm
• Rubber grips for operator handling
• Stationing supports for stable parking
