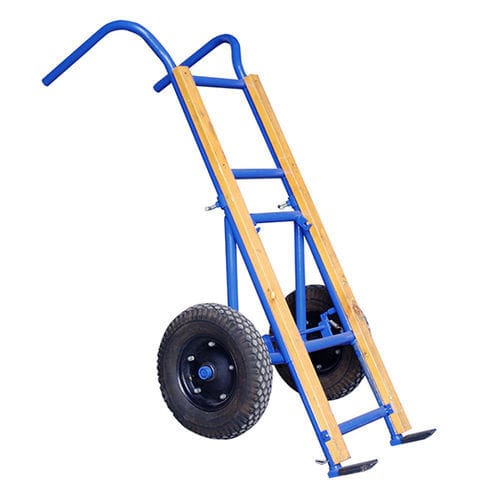

Handling hand truck AHPT1000A

for transportationhigh load capacitysteel

Overview
Universal hand truck AHPT-1000 A with a displaced center of gravity and robust tubular steel construction. Wooden bearing surface and tilting claws; claws available galvanized or rubber-coated. Special 6 PLY pneumatic wheels for high load capacity.

Applications

• Material handling in warehouses and logistics
• Transport of heavy goods in industrial and construction environments
• Loading and unloading on trucks and containers

Technical specifications

• Model / product code: AHPT-1000 A / AHPT1000A
• Working load limit (WLL): 1000 kg — 2204 lb
• Height (vertical): 1585 mm — 62.4 in
• Operating height (horizontal): 450 mm
• Track width: 700 mm — 27.6 in
• Blade dimension: 420 x 90 mm — 16.5 x 3.5 in
• Pneumatic wheel diameter: 400 mm — 15.7 in
• Net weight: 36.8 kg — 81 lb
• Gross weight: 37 kg — 82 lb
• Packaging dimensions: L 1580 x W 680 x H 460 mm — L 62.2 x W 26.8 x H 18 in
• Construction: Tubular steel frame with displaced center of gravity
• Bearing surface: Wooden
• Claws: Tilting claws, galvanized or rubber-coated
• Wheels: Special pneumatic, 6 PLY
