Transport cart AHTC1500

handlingmetalfor heavy loads

Overview

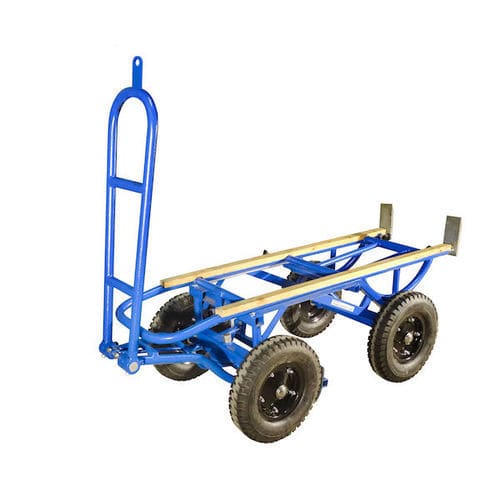

Aardwolf AHTC-1500 tilt-platform transport truck designed for handling heavy panels and loads. Four-wheel design with ball-type turntable steering, tilting claws and a parking brake integrated on the tow bar. The wooden bearing surface locks automatically when switching between vertical and horizontal positions; pneumatic wheels improve load distribution and mobility.

Key features

• 4-wheel truck with tilting platform
• Ball-type turntable steering
• Tilting claws for secure handling
• Parking brake on the tow bar
• Automatic locking wooden bearing surface when changing position
• Pneumatic wheels Ø400 mm for higher load capacity
• Working load limit: 1250 kg

Specifications
Metric (mm‑kg) — Imperial (in‑lb)
Length: 1734 mm (68.3 in)
Track width: 685 mm (27 in)
Blade dimension: 470 x 120 mm (18.5 x 4.7 in)
Pneumatic wheel diameter: 400 mm (15.7 in)
Working load limit (WLL): 1250 kg (2756 lb)
Net weight: 83.7 kg (184.5 lb)
Gross weight: 84 kg (185 lb)
Packaging dimensions: 1780 x 700 x 530 mm (70 x 27.6 x 20.9 in)

Applications

• Handling and transport of panels, sheets and boards
• Loading/unloading in warehouses and production areas
• Internal material handling where vertical-to-horizontal storage is required

Product details

• Brand: Aardwolf
• Model: AHTC-1500
• Product code: AHTC1500
• Type: Tilt-platform transport truck, 4 wheels
• Wheels: Pneumatic, Ø400 mm
• Steering: Ball-type turntable
• Braking: Parking brake on tow bar
• Locking: Automatic locking wooden bearing surface
