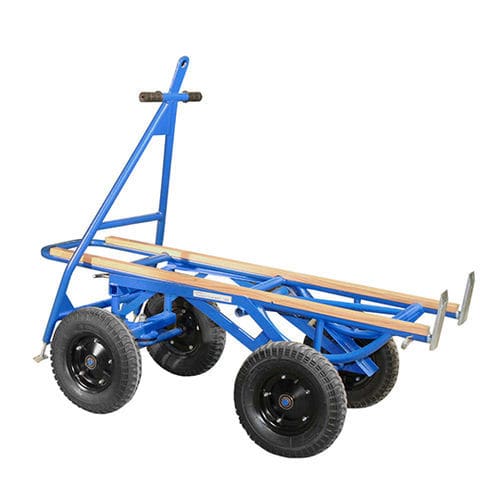

Transport cart AHTC750

handlingmetalfor trays

Overview
Four-wheel transport truck with a tilting platform designed for handling and transporting panels and bulky loads. Steering is provided by a ball-type turntable; tilting claws secure the load during handling. A parking brake is integrated on the tow bar. The wooden bearing surface locks automatically when switching between vertical and horizontal positions, simplifying loading and unloading operations.

Specifications

• Length: 1400 mm (55.1 in)
• Track width: 580 mm (22.8 in)
• Platform/blade dimension: 355 x 130 mm (14 x 5 in)
• Pneumatic wheel diameter: 265 mm (10.4 in)
• Working load limit: 750 kg (1653 lb)
• Net weight: 56.8 kg (125.2 lb)
• Gross weight: 57 kg (125.7 lb)
• Packaging dimensions: L 1400 x W 600 x H 420 mm (L 55 x W 23.6 x H 16.5 in)

Technical specifications

• Product code: AHTC750
• Type: Four-wheel transport truck with tilting platform
• Steering: ball-type turntable
• Load securing: tilting claws
• Brake: parking brake on tow bar
• Automatic locking: wooden bearing surface locks automatically when changing position (vertical ↔ horizontal)
• Intended use: handling and transport of panels, plates and bulky items in workshop and industrial environments
