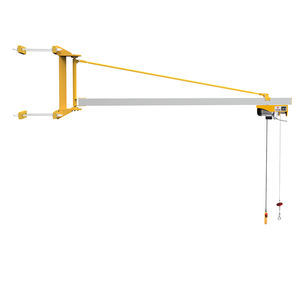

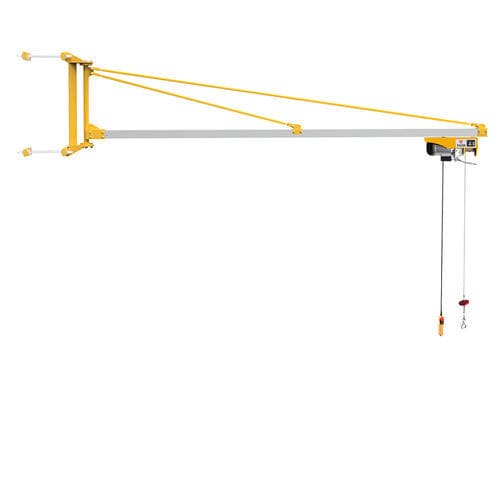

Pillar jib crane WMJC-5

wall-mounted270°overbraced

General
The Wall-mounted jib crane is a space-saving, versatile lifting solution designed for confined or restricted work areas. Mounted to a wall or structural column, it enables efficient material handling without occupying floor space. Manual 270° rotation provides wide coverage while reducing interference with nearby equipment.

Features

• Sealed roller-bearing pivot
• Over-braced arm design for enhanced durability
• 270° manual rotation for flexible positioning
• Compact wall-mounted installation to save floor space

Specifications
Metric | Imperial
Jib length: 5,000 mm | 196.9″
Arm height: 2,816 mm | 110.8″
Arm length: 5,041 mm | 198.5″
Crane height: 3,850 mm | 151.5″
Working load limit: 150 kg | 330.7 lbs

Characteristics / Technical specifications

• Brand: Aardwolf
• Product code: WMJC-5
• Jib length: 5,000 mm (196.9″)
• Arm height: 2,816 mm (110.8″)
• Arm length: 5,041 mm (198.5″)
• Crane height: 3,850 mm (151.5″)
• Working load limit (WLL): 150 kg (330.7 lbs)
• Rotation: 270° manual
• Pivot type: sealed roller-bearing
• Mounting: wall or structural column
