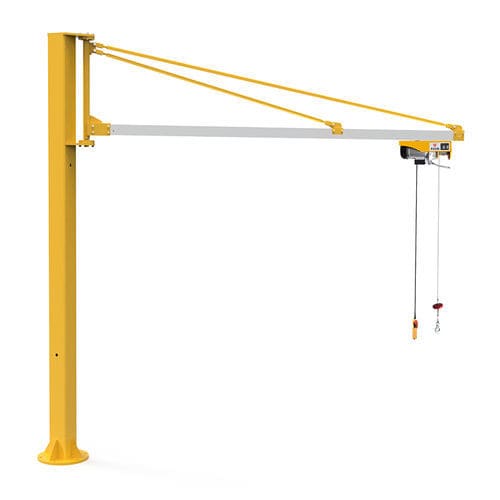

Free-standing jib crane FMJC-4

floor-mounted270°electric

General
The floor-mounted jib crane is a free-standing lifting solution designed for industrial workstations, providing high stability where overhead cranes are impractical. It delivers 270° rotation for wide floor coverage and is compatible with wire rope or electric hoists and vacuum lifters.

Features

• Sealed roller-bearing pivot for smooth rotation
• Over-braced arm design for improved resistance to bending forces
• 270° continuous rotation
• Easy-moving hoist trolley compatible with standard hoists
• Rubber end stop to absorb impact

Specifications (Metric / Imperial)
Jib length: 4000 mm / 157.5 in
Arm height: 3150 mm / 124 in
Arm length: 4000 mm / 157.5 in
Crane height: 4000 mm / 157.5 in
Working load limit (WLL): 200 kg / 440.9 lbs

Technical details

• Brand: Aardwolf
• Model / Product code: FMJC-4
• Type: Floor-mounted jib crane (free-standing)
• Rotation: 270°
• Pivot: sealed roller-bearing pivot
• Hoist compatibility: suitable for wire rope/electric hoists and vacuum lifters
• Key design elements: over-braced arm; easy-moving hoist trolley; rubber end stop
