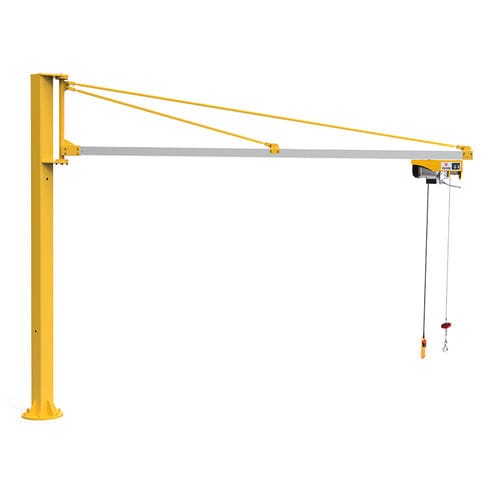

Free-standing jib crane FMJC-5

floor-mounted270°overbraced

General
The floor-mounted jib crane FMJC-5 is a freestanding lifting solution for industrial workstations where overhead cranes are impractical. Its bolted floor base and over-braced arm provide stability and reliable operation while allowing full 270° rotation for wide floor coverage.

Features

• Sealed roller-bearing pivot
• Over-braced arm design for enhanced structural resistance
• Full 270° rotation for extended coverage
• Easy-moving hoist trolley compatible with standard hoists
• Rubber end stop for controlled travel

Specifications
Metric / Imperial values:
Jib length: 5000 mm / 196.9"
Arm height: 3150 mm / 124"
Arm length: 5000 mm / 196.9"
Crane height: 4000 mm / 157.5"
Working load limit: 150 kgs / 330.6 lbs

Technical details

• Product code: FMJC-5
• Rotation: 270°
• Suitable for use with hoists or vacuum lifters
• Sealed roller-bearing pivot for low maintenance
• Floor-mounted, over-braced arm for increased rigidity
• Easy-moving hoist trolley and rubber end stop included
