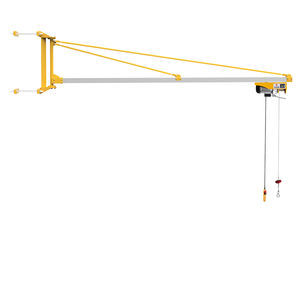

Wall-mounted jib crane WMJC-4

270°electricoverbraced

General
The WMJC-4 wall-mounted jib crane is a compact lifting solution for confined industrial work areas. Fixed to a wall or structural column, it provides lateral coverage while keeping floor space available. The arm offers 270° manual rotation for flexible access to the work area.

Features

• Sealed roller-bearing pivot for low-maintenance rotation
• Over-braced arm to resist bending and torsional loads
• 270° manual rotation
• Compatibility with standard electric or manual hoists and trolleys

Specifications
Metric | Imperial
Jib length: 4000 mm | 157.5"
Arm height: 2816 mm | 110.8"
Arm length: 4041 mm | 159.1"
Crane height: 3850 mm | 151.5"
Working load limit (WLL): 200 kg | 440.9 lbs

Technical details

• Brand: Aardwolf
• Product code: WMJC-4
• Mounting: wall-mounted on load-bearing wall or structural column
• Rotation: 270° manual
• Pivot: sealed roller-bearing
• Design: over-braced arm for increased structural resistance
• Recommended use: local material handling in workshops, production cells, maintenance bays
• Installation note: structural anchorages and supporting structure must be verified by a qualified engineer before installation
