Citrus peeler OP30

citrus peeler
citrus peeler
Add to favorites
Compare this product


Food product
citrus, kiwi, mango
Operational mode

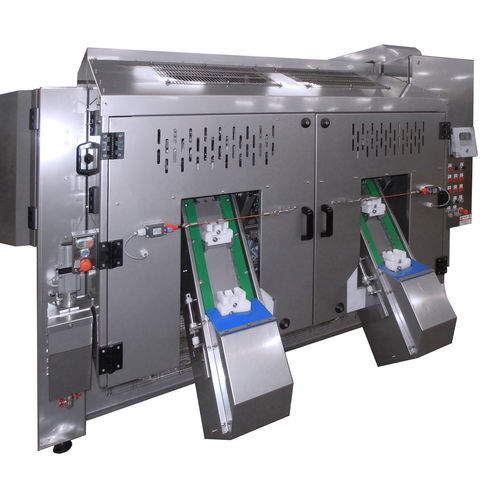

The OP30 is a semi-automatic fruit processing machine that can be used to process mango, kiwi, or citrus, including orange and grapefruit. The machine can be used to peel one fruit variety at a time or even two separate fruits since it’s equipped with two peeling heads. The speed is 24 fruit per minute when processing mangoes, increased to 30 when peeling citrus or kiwi. Fruits are positioned manually into the feeding cups by one operator. Two self-centering hands will center and transfer the fruit between two mandrels, these will put the fruits in rotation to allow their peeling. The ABL patented peeling head will gently perform the peeling following the fruit shape according it’s dimension with the possibility to adjust the peeling depth also with the machine in function. MNG24 Automatic destoning machine for mangoes, with manual fruit feeding and direct transfer to the lower and upper cutting stations, following a programmed sequence of operations. The machine is equipped to perform an incision between pulp and stone, by means of blades properly shaped to follow the fruit profile, ensuring a high-quality standard of the final product, keeping the physical and organoleptic properties (like structure, color, taste and consistency), unchanged during the complete process. The machine performs an output up to 24 mangoes/minute. MNG24 Mango Destoner can be connected to the OP30KM peeling machine and to the TKM Mango Cutting Machine.
