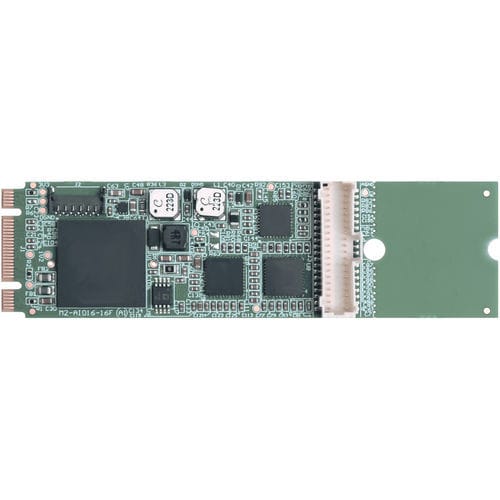

Analog I/O card M.2-AIO16-16F

differentials4 analog outputs8 analog inputs

-M.2 2260/2280 “B/M” size Card with latching I/O connectors -2× 16-bit, bipolar, differential, A/D converters sampling at up to 1MHz, simultaneously (2MSPS aggregate) -Software selectable as 16+0, 8+4, or 0+8 (single-ended + differential inputs) -Seven channel-by-channel Programmable differential input ranges from ±0.3125V up to ±12V -A/D starts via software, external input, or periodic timer -A/D “scan start” mode optimizes inter-channel timing -High Impedance, 16-channel input: 500 MΩ -4 kSample FIFO plus DMA for efficient, robust data streaming Four 16-Bit Analog Outputs -5 per-channel programmable ranges: 0-5V, 0-10V, ±2.5V, ±5V, ±10V -Outputs drive ±10mA -“FDS” model allows hardware-timed DMA+FIFO (8 kSamples) waveform streaming on up to four DACs -Two digital I/O with flexible secondary functions -Onboard watchdog with status output -RoHS Standard -Works in your computers’ NVME slots! -Available Now in mPCIe form! -Designed, made, supported, and manufactured in the USA FACTORY OPTIONS -4-20mA or 10-50mA ADC input ranges -Extended temperature operation (-40°C to +85°C) The M.2-AIO16-16F is an ideal solution for adding high-speed analog I/O capabilities to any computer with an M.2 slot. The M.2-AIO16-16F is a 16-bit resolution A/D & D/A board with two simultaneous 1MHz A/D converters, with 8 single ended or 4 differential analog inputs multiplexed to each ADC. Each channel can be independently software configured to accept any of 8 different input ranges.
