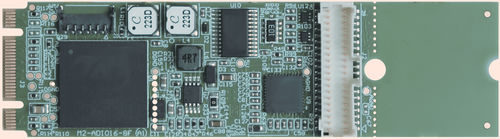

Analog I/O card M.2-ADIO16-8F

PCI Expressdifferentials8-channel

-M.2 2260/2280 “B/M” size Card with latching I/O connectors -16-Bit 1MSPS Complete Data Acquisition System -Sustained Sampling Rates Up To 1MHz -High Impedance, 8-Channel Input: 1 MΩ -Differential Input Voltage Ranges from ±0.64V to ±24.576V -Flexible, Software Configured Functionality -8 Pseudo-differential (Single-Ended) or 4 Differential Inputs -Fast DMA transfers from 4 kSample FIFO -Four 16-Bit Analog Outputs -Independently Programmable Output Ranges: -0V To 5V, 0V To 10V, ±2.5V, ±5V, ±10V -Outputs Drive ±10Ma Guaranteed -“FDS” model allows hardware-timed DMA+FIFO (8 kSamples) waveform streaming on up to four DACs -16 Digital lines with alternate functions including ADC and DAC Trigger -RoHS Standard -Works in your computers’ NVME slots! -Available in PCI Express Mini (mPCIe) form! -Designed, made, supported, and manufactured in the USA FACTORY OPTIONS -4-20mA or 10-50mA ADC input ranges -Extended temperature operation (-40°C to +85°C) The M.2-ADIO16-8F is an ideal solution for adding high-speed analog I/O capabilities to any computer with an M.2 slot. The M.2-ADIO16-8F is a 16-bit resolution A/D & D/A board with 16 flexible digital I/O, with 8 single ended or 4 differential analog inputs. Each channel can be independently software configured to accept any input ranges. Sixteen digital I/O configured in 9 “I/O Groups” as input or output per group. Bits 0-7 form one group, and bits 8-15 can be configured for input/output mode individually. The digital inputs implement various “alternate functions” including external trigger of ADC or DAC.
