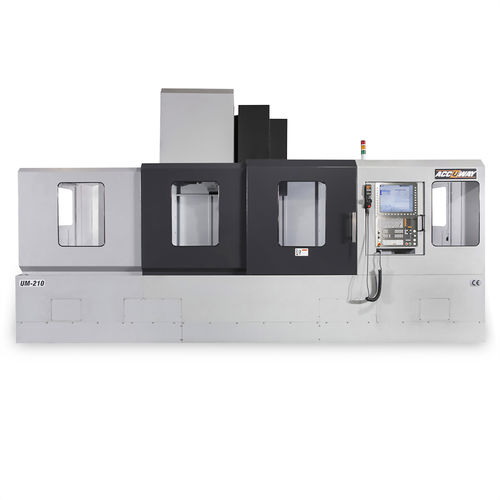

3-axis CNC machining center UM-210verticalBT 5024 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 50
- Number of tool stations
- 24 tools, 32 tools
- X travel
2,100 mm
(82.68 in)- Y travel
850 mm
(33.46 in)- Z travel
850 mm
(33.46 in)- Rotational speed
6,000 rpm
(37,699 rad.min-1)- Power
22 kW, 26 kW
(29.91 hp, 35.35 hp)- Work feed X-axis
15,000 mm/min
(9.84 in/s)- Work feed Y-axis
15,000 mm/min
(9.84 in/s)- Work feed Z-axis
15,000 mm/min
(9.84 in/s)- Table load capacity
2,500 kg
(5,512 lb)- Tool weight (max)
15 kg
(33.1 lb)- Weight
17,000 kg
(37,478.58 lb)- Overall length
5.4 m
(17'08" )- Overall width
3.9 m
(12'09" )- Overall height
3 m
(9'10" )
Description
Bearing inner diameter mm - 90
Drive system - 2-step gearbox
Spindle nose to table - mm - 150~1000
Table dimension - mm - 2200 x 980
T-slot(No. of T-slot x width x pitch) - mm - 8 x 18 x 120
