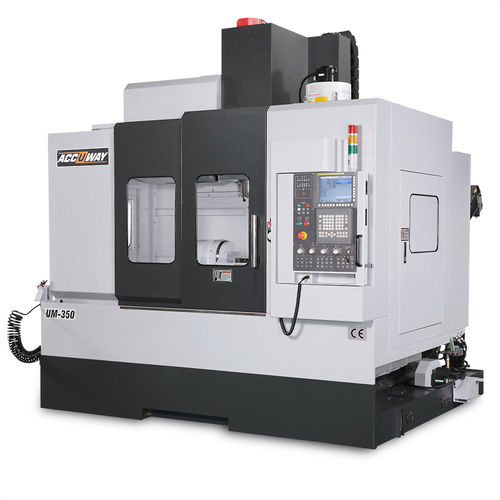

5-axis CNC machining center UM-350
verticalrotating tableBT 40

5-axis CNC machining center - UM-350 - Accuway Machinery - vertical / rotating table / BT 40
5-axis CNC machining center - UM-350 - Accuway Machinery - vertical / rotating table / BT 40
5-axis CNC machining center - UM-350 - Accuway Machinery - vertical / rotating table / BT 40 - image - 2
5-axis CNC machining center - UM-350 - Accuway Machinery - vertical / rotating table / BT 40 - image - 3
5-axis CNC machining center - UM-350 - Accuway Machinery - vertical / rotating table / BT 40 - image - 4
5-axis CNC machining center - UM-350 - Accuway Machinery - vertical / rotating table / BT 40 - image - 5
5-axis CNC machining center - UM-350 - Accuway Machinery - vertical / rotating table / BT 40 - image - 6
Add to favorites
Compare this product

Characteristics

Number of axes
5-axis
Spindle orientation
vertical
Structure
rotating table
Spindle mount
BT 40
Number of tool stations
24 tools, 40 tools, 32 tools
Other characteristics
direct-drive
X travel

700 mm
(27.56 in)

Y travel

550 mm
(21.65 in)

Z travel

550 mm
(21.65 in)

Rotational speed

12,000 rpm, 15,000 rpm
(75,398 rad.min-1, 94,248 rad.min-1)

Power

7.5 kW, 11 kW
(10.2 hp, 14.96 hp)

Work feed X-axis

42,000 mm/min
(27.56 in/s)

Work feed Y-axis

42,000 mm/min
(27.56 in/s)

Work feed Z-axis

42,000 mm/min
(27.56 in/s)

Table load capacity

200 kg
(441 lb)

Tool weight (max)

7 kg
(15.4 lb)

Weight

7,500 kg
(16,534.67 lb)

Overall length

2.7 m
(8'10" )

Overall width

2.2 m
(7'02" )

Overall height

3.2 m
(10'05" )

Description

Bearing inner diameter - mm - 70 A-axis travel - degree - -120 / +30 C-axis travel - degree - 360 Max. speed of rotary axis (C-axis) - rpm - 40 Max. speed of tilting axis (A-axis) - rpm - 33.3 Spindle nose to table - mm - 40~540 Table dimension - mm - Ø350 Max. workpiece size - mm - Ø350 x 280 T-slot size - mm - 12
