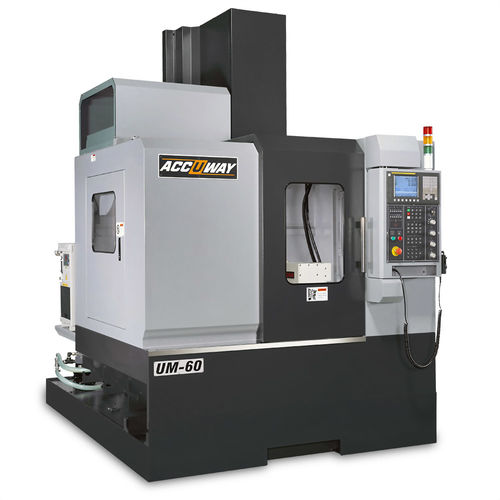

3-axis CNC machining center UM-60verticalBT 4024 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40
- Number of tool stations
- 24 tools
- Other characteristics
- direct-drive
- X travel
600 mm
(24 in)- Y travel
520 mm
(20 in)- Z travel
540 mm
(21 in)- Rotational speed
10,000 rpm, 12,000 rpm
(62,832 rad.min-1, 75,398 rad.min-1)- Power
7.5 kW, 11 kW
(10.2 hp, 14.96 hp)- Work feed X-axis
36,000 mm/min
(24 in/s)- Work feed Y-axis
36,000 mm/min
(24 in/s)- Work feed Z-axis
36,000 mm/min
(24 in/s)- Table load capacity
750 kg
(1,653 lb)- Tool weight (max)
7 kg
(15.4 lb)- Weight
5,000 kg
(11,023.11 lb)- Overall length
2 m
(6'06" )- Overall width
2.6 m
(8'06" )- Overall height
2.8 m
(9'02" )
Description
Bearing inner diameter mm - 70
Spindle nose to table - mm - 150~690
Table dimension - mm - 750 x 560
T-slot(No. of T-slot x width x pitch) mm 5 x 18 x 100
