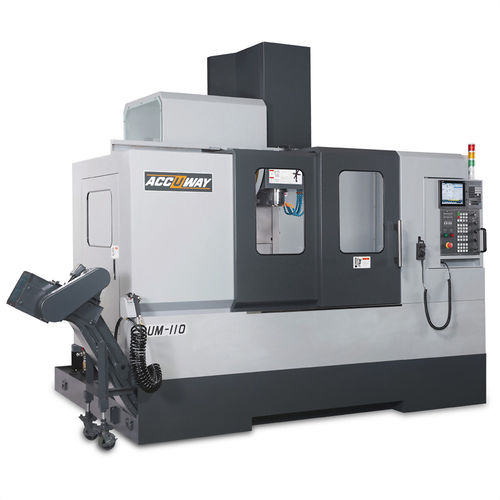

3-axis CNC machining center UM-110verticalBT 4024 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40
- Number of tool stations
- 24 tools, 32 outils, 30 tools
- Other characteristics
- direct-drive
- X travel
1,100 mm
(43 in)- Y travel
550 mm
(22 in)- Z travel
550 mm
(22 in)- Rotational speed
10,000 rpm, 12,000 rpm
(62,832 rad.min-1, 75,398 rad.min-1)- Power
7.5 kW, 11 kW, 15 kW, 18.5 kW
(10.2 hp, 14.96 hp, 20.39 hp, 25.15 hp)- Work feed X-axis
30,000 mm/min
(20 in/s)- Work feed Y-axis
30,000 mm/min
(20 in/s)- Work feed Z-axis
30,000 mm/min
(20 in/s)- Table load capacity
1,200 kg
(2,646 lb)- Tool weight (max)
7 kg
(15.4 lb)- Weight
7,500 kg
(16,534.67 lb)- Overall length
3 m
(9'10" )- Overall width
2.2 m
(7'02" )- Overall height
3 m
(9'10" )
Description
Bearing inner diameter - mm - 70
Spindle nose to table - mm - 150~700
Table dimension - mm - 1200 x 600
T-slot(No. of T-slot x width x pitch) - mm - 5 x 18 x 100
