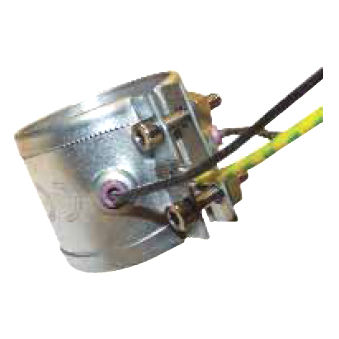

Band heater CMB

- Max. watt density over the surface of the heater : 5 W/cm² - Max. operating temperature over the surface of the heater: 340°C, depending on working conditions. - Available in 2 versions: * wire connection: wiring with a large bending radius, nevertheless quite fragile. * metal braid connection, embossed exit: appreciated for its low profile. - Nickel core, fiberglass insulated + earth wire. For the model with embossement connection, the wires are protected with a galvanized steel braid. - Voltage: 230 V single phase. - Electric insulation with mica plates. - Square angle flange, screw CHC M4 and square nuts. - Products are in accordance with EN 60335-1 Wattage tolerance : +5% -10% Leakage current < 0.75 mA/kW
