Portable torque meter XA
bench-topcalibrationwith printer

portable torque meter
portable torque meter
portable torque meter
portable torque meter
portable torque meter
portable torque meter
portable torque meter
portable torque meter
portable torque meter
Add to favorites
Compare this product


Characteristics

Type
bench-top, portable
Applications
calibration
Other characteristics
automatic, with printer
Accuracy

0.5 %, 1 %

Description

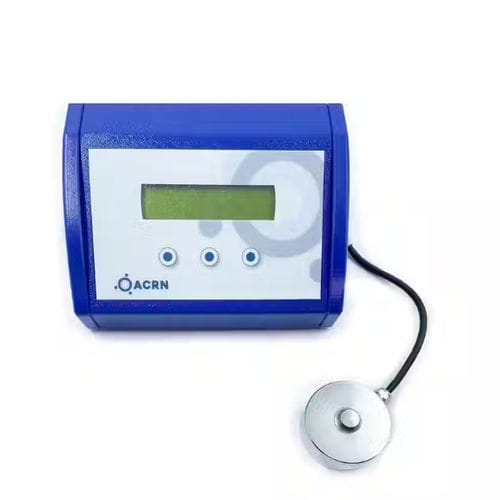

XA-m can read force or torque sensor values. Using the MICA® connector, auto recognition of the sensor sets up the console (force, pression, torque) and read sensor’s characteristics (calibration date, gain, …) Only three buttons make an intuitive and easy programmable interface. Easy to read results on a graphic LCD screen Small, robust and maintenance free this console is simple and user-friendly device. Technical information Measurement mode - Peak-hold or live display Memory - Onboard memory 200 values – 15 programs (min max threshold) Sampling rate - 1kHz average – 4 user selectable values Connectivity - RS232 protocl Power supply - Battery with charger Connectique - RS232 Port Language - English, French Dimensions - w160 x d115 x h75 mm Guarantee 3 ans Options Matrix printer PC RS232 Cable or RS 232-to-USB DataXport® Software for data export on PC Annual calibration in the ACRN metrology laboratory Delivered with: Transport case Battery charger Calibration certificate for a given load cell

Catalogs

No catalogs are available for this product.

See all of ACRN‘s catalogs
