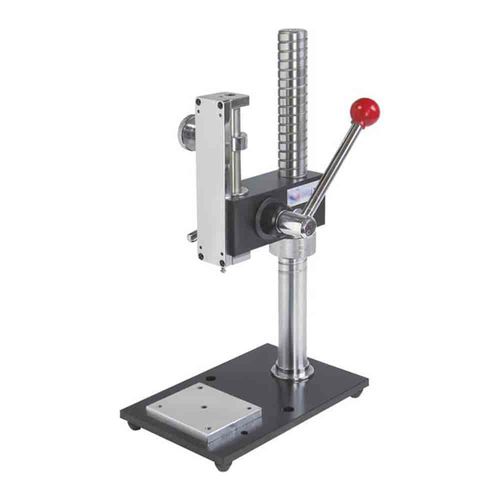

Mechanical test bench TVPtensioncompressiontensile
Add to favorites
Compare this product
Characteristics
- Test type
- mechanical, tension, compression, tensile, dynamometer
- Operating mode
- manual
- Test material
- for workpieces
- Technology
- digital
Description
Very economical traction and compression stand,
TVP stands are used to meet simple demands for tensile and compression testing.
This product is to be associated with a mechanical or digital dynamometer.
TVP Benefits
Tension & compression
Lever operation, stroke 78 mm
Low stop on translation
Screwed stop for height adjustment
Installation of FB type dynamometers
TCP-R digital control option
Technical informations
Race -
78 mm
Height adjustment -
Mini 115 to 318 mm
Dimensions -
H 420 x 233 x 150
Weight -
10.5 kg
