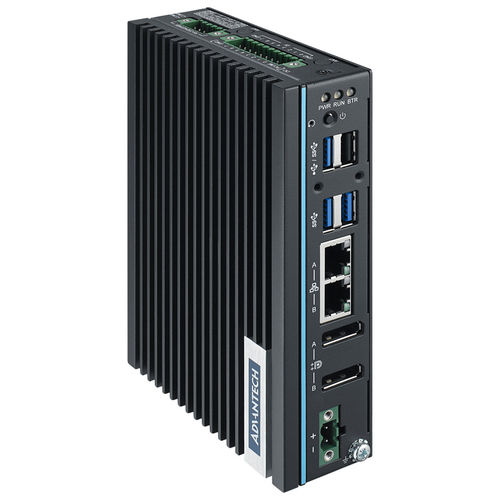

EDGE PC UNO-137 V2

DIN railIntel® Atom™ x6425REIntel® Atom x6413E

Overview
The UNO-137 V2 is a compact integrated DIN-rail IPC designed for industrial control and edge computing. It supports Intel® Atom® x6413E (1.5 GHz) or x6425RE (1.9 GHz) processors and provides multiple industrial I/O and dual storage options for flexible deployment.

• Intel® Atom® x6413E (1.5 GHz) or x6425RE (1.9 GHz) with 8 GB DDR4 (onboard/configurable)
• Wide operating temperature options down to −40 °C and wide power input 10 ~ 36 VDC
• Port isolation for 8 x DI, 8 x DO and 2 x COM
• DP++ for HDMI/DVI compatibility (2 x DisplayPort)
• Dual storage: M.2 M-key 2242 (PCIe/NVMe or SATA) plus mSATA
• Onboard TPM 2.0 for hardware-based security
• Modular iDoor extensions supported

Certifications

• CE
• FCC
• UL 61010-2-201
• CCC
• BSMI

Hardware Specifications
Power Input: 10 ~ 36 VDC
CPU: Intel® Atom™ x6413E 1.5 GHz Quad-Core or Intel® Atom® x6425RE 1.9 GHz Quad-Core (SKU dependent)
Memory: 1 x SO-DIMM, 8 GB DDR4 3200 MHz (onboard/configuration shown)
Storage: 1 x M.2 2242 M-Key (PCIe/NVMe or SATA) and 1 x mSATA for dual storage
Graphics Engine: Intel® UHD Graphics
OS Support: Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
Hardware Security: TPM 2.0

Mechanical
Weight (Net): 0.8 kg (1.7 lb)
Enclosure: Aluminum housing
Mounting: DIN-rail
Dimension (W x H x D): 35 x 150 x 105 mm

I/O Interface
LAN Ports: 2 x 10/100/1000/2500 Mbps (2.5GbE capable)
Displays: 2 x DisplayPort (DP)
Expansion: 1 x Full-size mPCIe slot; 1 x M.2 E key; 1 x SIM Card slot
Power Connector: 1 x 2-pin Terminal Block
USB Ports: 3 x USB 3.2, 1 x USB 2.0
Serial Ports: 2 x RS-232/422/485

Environment
Storage Temperature: −40 ~ 85 °C (−40 ~ 185 °F)
Operating Temperature: SKU-dependent: −40 ~ 70 °C or −40 ~ 60 °C
Relative Humidity: 95% RH (non-condensing)
Ingress Protection: IP20
Vibration Protection: 2 Grms, random
Shock Protection: 50 G, half sine

Local I/O
General Digital I/O: 8-ch DI, 8-ch DO

Additional Product Features

• DP++ for HDMI/DVI compatibility
• Onboard TPM 2.0 for hardware-based security
• Modular iDoor extension support
• Rugged DIN-rail kit included
• Compliant with IEC 61010-1 safety requirements

Technical Specifications

• Model: UNO-137 V2
• CPU options: Intel® Atom® x6413E (1.5 GHz) or x6425RE (1.9 GHz)
• Memory: 1 x SO-DIMM, 8 GB DDR4 3200 MHz
• Storage: M.2 2242 M-Key (SATA/PCIe/NVMe) plus mSATA support
• Graphics: Intel® UHD Graphics
• LAN: 2 x 10/100/1000/2500 Mbps
• Display: 2 x DP
• Digital I/O: 8 DI, 8 DO
• Serial: 2 x RS-232/422/485
• USB: 3 x USB 3.2, 1 x USB 2.0
• Expansion: full-size mPCIe, M.2 E key, SIM slot
• Power Input: 10 ~ 36 VDC via 2-pin terminal block
• Operating Temperature: down to −40 °C (SKU dependent up to −40 ~ 70 °C or −40 ~ 60 °C)
• Storage Temperature: −40 ~ 85 °C
• Humidity: 95% RH (non-condensing)
• Enclosure: Aluminum; Mounting: DIN-rail; Dimensions: 35 x 150 x 105 mm; Weight: 0.8 kg
• Security: TPM 2.0 onboard
• Certifications: CE, FCC, UL 61010-2-201, CCC, BSMI
