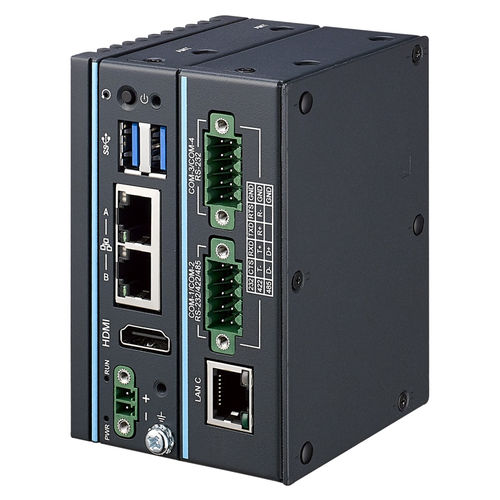

EDGE PC UNO-127 series

DIN railquad-coreIntel® Atom x6413E

Overview

• Pocket-size DIN-rail Edge IPC with Intel® Atom® x6413E CPU
• Intel® Quad-Core x6413E processor with onboard 4 GB or 8 GB DDR4
• Fanless, cable-free design for stable industrial deployment
• Standard I/O: 2×GbE, 2×USB 3.2, 1×HDMI and full-size mPCIe expansion
• Built-in TPM 2.0 and system ground isolation for hardware security
• Certified IEC 61010-2-201 for industrial applications; Ubuntu Core 20 certified
• Supports Windows 11 IoT Enterprise LTSC

Certifications

• CE
• FCC
• UL 61010-2-201
• CCC
• BSMI
• cUL
• FCC Class A
• R33138
• UKCA

Hardware
Power input: 10–30 VDC
CPU: Intel® Atom™ x6413E 1.5 GHz Quad‑Core
Memory: 1 × DDR4 onboard — 4 GB (UNO-127-E22BA) or 8 GB (UNO-127-E23BA)
Storage: 1 × 64 GB eMMC; 1 × mSATA (shared with mPCIe)
Graphics: Intel® UHD Graphics
OS support: Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
Hardware security: TPM 2.0


Mechanical
Net weight: 0.5 kg (1.1 lb)
Enclosure: Aluminum housing
Mounting: DIN-rail
Dimensions (W × H × D): 33.5 × 100 × 70 mm


I/O Interface
LAN ports: 2 × 10/100/1000 Mbps
Display: 1 × HDMI
Expansion: 1 × full-size mPCIe slot
Power connector: 1 × 2-pin terminal block
USB: 2 × USB 3.2


Environment
Operating temperature: -20 ~ 60 °C (-4 ~ 140 °F)
Storage temperature: -40 ~ 85 °C (-40 ~ 185 °F)
Relative humidity: 10 ~ 95% RH (non-condensing)
Ingress protection: IP30
Vibration: 2 Grms, random
Shock: 50 G, half sine


Technical specifications

• Model: UNO-127
• Processor: Intel® Atom® x6413E (1.5 GHz, Quad‑Core)
• Memory options: 4 GB or 8 GB DDR4 onboard
• Storage: 64 GB eMMC + mSATA (shared with mPCIe)
• Connectivity: 2 × GbE, 2 × USB 3.2, 1 × HDMI
• Expansion: Full-size mPCIe slot
• Security: TPM 2.0
• Power input: 10–30 VDC via 2-pin terminal block
• Form factor / Mounting: Pocket-size DIN-rail, aluminum housing
• Dimensions: 33.5 × 100 × 70 mm; Weight: 0.5 kg
• Certifications: CE, FCC, UL 61010-2-201, CCC, BSMI, cUL, FCC Class A, R33138, UKCA
• Operating temperature: -20 ~ 60 °C; Storage temperature: -40 ~ 85 °C
• Ingress protection: IP30
