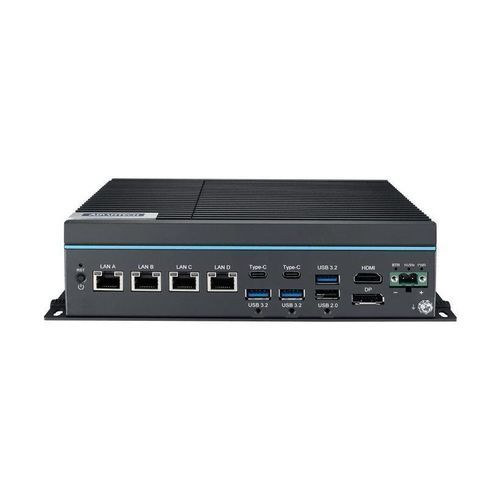

Box PC UNO-2484V3 seriesembeddedIntel® Core™ UltraRS-232
Add to favorites
Compare this product
Characteristics
- Type
- box
- Configuration
- embedded
- Processor
- Intel® Core™ Ultra
- Ports
- DDR5, HDMI, DisplayPort, USB 2.0, RS-232, RS-485, RJ45, gigabit Ethernet, 2.5 GbE, RS-422, USB 3.2, USB Type-C
- Operating system
- Linux, Windows 11
- Size
- compact
- Domain
- industrial
- Protection level
- IP20
- Other characteristics
- SSD, modular
- Memory
- 32 GB
Description
Overview
Key Features
Certifications
Technical specifications
- Modular embedded box PC supporting Intel® Core™ Ultra (Series 2) processors for compact industrial applications
- Flexible I/O and expansion with multiple display outputs, multi‑GbE LAN and abundant USB/serial ports
- Designed for industrial environments with wide operating temperature, shock and vibration protection
Key Features
- Operating temperature: -20 ~ 60 °C
- Power input: 10 ~ 36 VDC via 2‑pin terminal block
- Up to four displays: 1×DP, 1×HDMI, 2×Type‑C
- Ethernet: 4×LAN (3×2.5GbE + 1×1GbE)
- USB: 3×USB 3.2 Gen2, 1×USB 2.0, 2×Type‑C
- Serial: 4×RS-232/422/485
- Expansion: 2×M.2 M-key (storage), 1×M.2 E-key, 1×M.2 B-key; 2×2.5" SSD/HDD bays
- Memory: optional DDR5, 2 slots, up to 32 GB per channel
Certifications
- CE
- FCC
- UL / cUL
- CCC
- BSMI
- RoHS
- UKCA
Technical specifications
- Product family: Compact / Modular Embedded Box PC
- Model: UNO-2484V3
- Processor support: Intel® Core™ Ultra (Series 2) — examples: Ultra 5 225U, Ultra 7 255U
- Operating temperature: -20 ~ 60 °C (-4 ~ 140 °F)
- Storage temperature: -40 ~ 85 °C (-40 ~ 185 °F)
- Humidity (operating): 95% RH (non‑condensing)
- Input voltage: 10 ~ 36 VDC; power connector: 1×2‑pin terminal block
- LAN ports: 3×2.5GbE (Intel® i226‑LM), 1×1GbE (Intel® i219‑LM)
- USB ports: 3×USB 3.2 Gen2, 1×USB 2.0, 2×Type‑C
- Display outputs: 1×HDMI, 1×DP, 2×Type‑C (up to 4 displays)
- Audio: Line‑Out, Mic‑In
- Serial ports: 4×RS‑232/422/485
- Storage: 1×M.2 SATA (2280 M‑Key), 2×2.5" SSD/HDD bays
- M.2 expansion: 2×M.2 M‑key, 1×M.2 E‑key, 1×M.2 B‑key
- Hardware security: TPM 2.0
- OS support: Windows 11 LTSC, AdvLinux
- Ingress protection: IP20
- Shock protection: 50 G (half sine); Vibration: 3 Grms, random
- Enclosure: Aluminum; Dimensions (W×H×D): 200 × 140 × 90 mm; Weight (net): 1.4 kg
