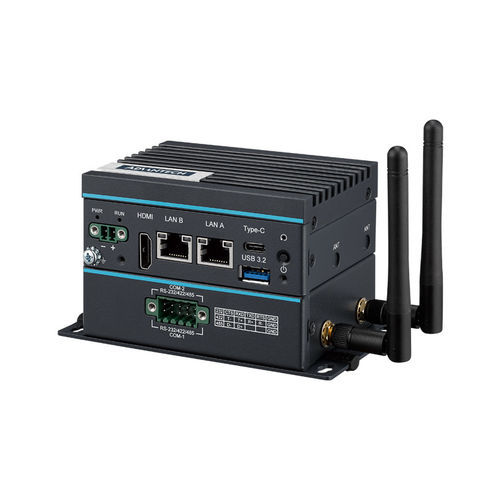

IoT gateway UNO-2271G V3

IoT EdgewirelessLAN

Product overview

• Pocket-size Edge IoT gateway powered by Intel® Atom™ x7211RE (Dual-core) with 8 GB LPDDR5 onboard memory and 64 GB eMMC storage
• Fanless, cable-free compact system designed for stable operation in space-constrained industrial environments
• Optional second stack for PoE, serial (COM), wireless connectivity or iDoor modules to extend functionality
• Supports Microsoft Windows 11 LTSC and Linux (Ubuntu 22.04)

Single-Cable USB Type-C
The device provides a single USB Type-C connection for combined touch, video and power delivery to streamline HMI and industrial display installations and reduce cabling complexity and installation cost.

Key features & benefits

• Simplified integration: single USB-C connectivity reduces wiring and installation effort for smart manufacturing and IoT deployments
• Compatibility: intended to work with industrial touch displays and HMI solutions supporting integrated touch, video and power
• Compact, fanless design: enables reliable operation in constrained spaces and reduces maintenance needs

I/O, storage & expandability

• Display: 1 x HDMI
• LAN: 2 x 10/100/1000/2500 Mbps
• USB: 2 x USB 3.2
• Expansion: 1 x M.2 B key (for additional modules)
• Storage: 1 x eMMC (64 GB)
• Power input: 10~30 VDC via 2-pin terminal block

Certifications
CE, FCC, UL, CCC, BSMI

Technical specifications

• Model: UNO-2271G V3
• CPU: Intel® Atom™ x7211RE 3.2 GHz, Dual-Core
• Graphics: Intel® UHD Graphics 620
• Memory: 8 GB LPDDR5 onboard
• Storage: 64 GB eMMC
• OS support: Microsoft Windows 11 LTSC, Linux (Ubuntu 22.04)
• Displays: 1 x HDMI
• LAN ports: 2 x 10/100/1000/2500 Mbps
• USB ports: 2 x USB 3.2
• Expansion: 1 x M.2 B key
• Power input: 10~30 VDC
• Power connector: 1 x 2-pin terminal block
• Dimensions (W x H x D): 100 x 70 x 40 mm
• Enclosure: Aluminum housing
• Weight (Net): 0.5 kg (1.1 lb)
• Operating temperature: -20 ~ 60 °C (-4 ~ 140 °F)
• Storage temperature: -40 ~ 85 °C (-40 ~ 185 °F)
• Relative humidity: 10 ~ 95% RH (non-condensing)
• Ingress protection: IP30
• Shock protection: 50 G, half sine
• Vibration protection: 2 Grms, random
• Optional expansions: second stack supporting PoE, serial (COM), wireless connectivity or iDoor modules
