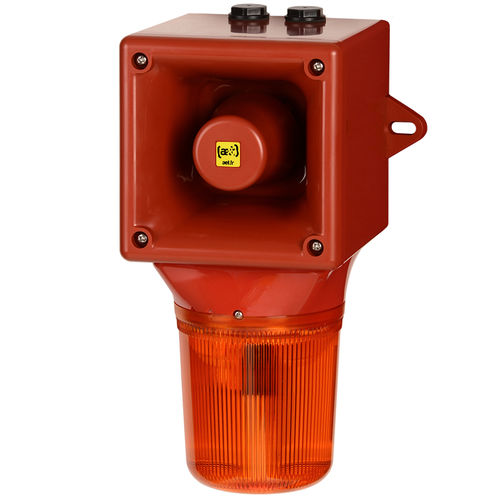

This Optason® handset combines a 113 dB siren at 1 m with an O300L type LED light. Fire and siren can be controlled separately.
Plus points
64 tones
4 tones can be remotely controlled
9 operating modes: 4 flash modes, 4 rotating modes, Continuous
2 modes controlled by wiring
Low inrush current
Automatic synchronization
Double removable terminal blocks
Non-return diode for line monitoring
Technical characteristics
Product description : - LED / 113dB OPTASON® combi 64 Tones - IP 65
Functions - Flash
Functions - Permanent
Functions - Rotating
Number of Lighting Mode - 9
Lighting source - LED
Effective Range in Candelas - 19.0 cd
Synchronisation - Yes (in parallel mounting)
Output in dB - 113 dB
Number of Tones - 64
Number of remote tones - 4
Sound Adjustment - Yes by potentiometer
Choice of Tones - Yes - By microswitch
Acoustic signal type - Programmable tone
Ingress Protection - IP65
Min Operating Temperature - -40 °C
Max Operating Temperature - 66 °C
Min Storage Temperature - -40 °C
Max Storage Temperature - 70 °C
Relative Humidity - 95% at 20°C
Cable entries - 2 x M20
Power Factor - 100 %
Width - 130.0 mm
Height - 274.0 mm
Depth / Thickness - 135.0 mm
Housing Material - ABS/PC UL94 V0 & 5VA FR
Optical Materials - Polycarbonate
Available Lens Colours - Clear, Amber, Red, Blue, Yellow, Green
Colour (material) - Red
Tolerance - 10-50 VDC, 90-260 VDC/VAC
Voltage - Current Type - VDC, VAC, VDC/VAC
Voltage - 12, 24, 48, 115, 230
Nominal consumption - 283.5 mA @24 Vdc, 67 mA @230 Vac
Weight - 1 Kg, 1.25 Kg
