strobe beacon / xenon / 230VAC / 115VAC
QUADROF12

Add to MyDirectIndustry favorites
Compare this product

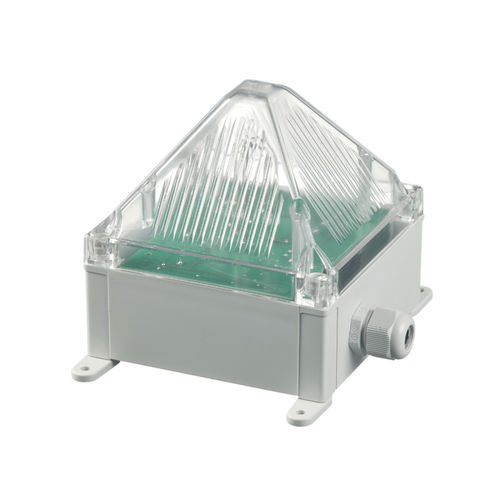

strobe beacon / xenon / 230VAC / 115VAC strobe beacon / xenon / 230VAC / 115VAC - QUADROF12
{{requestButtons}}

Characteristics

  • Type:

    strobe

  • Technology:

    xenon

  • Voltage level:

    230VAC, 115VAC, 24VDC

  • Other characteristics:

    rugged, polycarbonate, IP66, IP67

Description

The QUADRO F12 - Strobe Beacon 13 Joules is generally made suitable for various hazardous environments. This is specifically adapted for extreme environmental conditions. It is equipped with a highly-observable strobe light (13 Joules - Fresnel lens), and electronic circuit splatter resistant to moisture. It has a protection class IP66 & 67. It has a 100% duty cycle and can resist a relative humidity of 95%. This instrument weighs 600 g and has a dimension of 130 x 130 x 130 mm. Additionally, it can resist rated voltages of 24 VDC, 115 VAC 50/60 Hz, 230 VAC 50/60 Hz and can operate in a range of 18/30 V (24 V) 95/127 V (115 V AC) 195/253 V (230 V AC).
