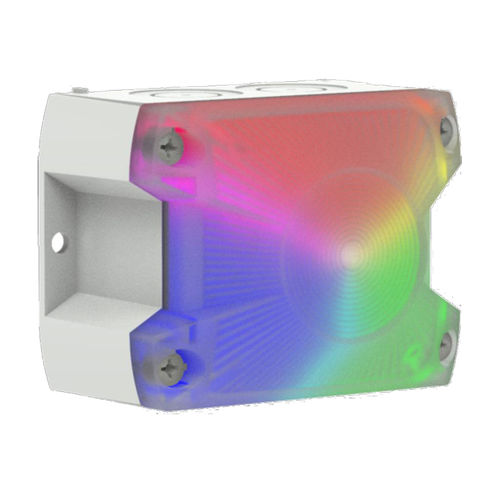

Steady traffic light PI05LED

blinkingflashLED

The PI05LED is a compact and quick to install multimode LED light Plus points 8 operating modes: Continuous / Blinking / Strobe Multicolour LED and remote mode selection (RGB version) Easy and quick to install Shock resistant Gray housing Technical characteristics Product description : - Compact Multimode LED light IP66 Functions - Flash Functions - Permanent Functions - Blinking Lighting source - LED Effective Range in Candelas - 70.0 cd Flash Rate - 0.1/0.5/0.75/1/2 Hz Ingress Protection - IP66 Impact Resistance - IK08 Min Operating Temperature - -40 °C Max Operating Temperature - 55 °C Min Storage Temperature - -40 °C Max Storage Temperature - 70 °C Relative Humidity - 90% at 20°C Cable entries - 3 M20 recesses on sides - 1 rear recess Min.Cable size - 0.14 mm2 Max. Cable size - 2.5 mm2 Power Factor - 100 % Electric Isolation - Class II Length - 109.5 mm Width - 85.8 mm Depth / Thickness - 80.6 mm Weight - 0,265 Kg Housing Material - ABS / Polycarbonate Optical Materials - Polycarbonate Colour (material) - Grey Available Lens Colours - RGB, Amber, Red, Green, Yellow, Clear, Blue Tolerance - 11-60 VDC, 90-265 VAC / 108-132 VDC Voltage - Current Type - VDC, VAC Voltage - 12, 24, 48, 115, 230 Nominal consumption - 120 mA @24 Vdc, 36 mA @230 Vac
