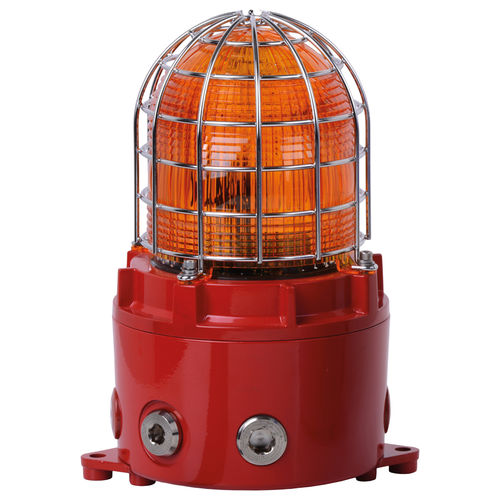

Strobe beacon D1XB2X15
flashxenon24 Vdc

strobe beacon
strobe beacon
strobe beacon
Add to favorites
Compare this product

Go to the ae&t website for more information

Characteristics

Type
strobe, flash
Technology
xenon
Voltage level
24 Vdc, 12 Vdc, 48VDC, 230VAC, 115VAC
Other characteristics
explosion-proof, ATEX, IECEx, caged, SIL, SIL2, IP66, IP67

Description

NEW BEACON D1xB2X15 15 Joules ATEX, IECEx, UL, SIL2 - ZONES 1, 2, 21 et 22 SIL1, SIL2 Route 2H SIL 2 Route 1H optional (24 Vdc only) Corrosion-resistant LM6 Marine aluminium housing Very high visibility with Fresnel effect Interchangeable optical colour lens Very easy wiring, optimum accessibility Protective grille supplied PE Supplied M20 ATEX - 6.5 to 11.9 mm - Brass Specification Product type : BEACON 15J 713 cd Source : Xenon Strobe Energy : 15 J Eff. Intensity cd : 713 cd Enclosure material : Marine grade LM6 aluminium alloy Lens material : High impact Borosilicate glass Ingress protection : IP66/67 Voltage : 12Vdc (10-14Vdc), 24V dc (20-28Vdc), 48Vdc (42-54Vdc) 115Vac (110-120Vac), 230Vac (220-240Vac) Cable entries : Side: 2 × 3/4"NPT & 2 x M20x1.5mm Pendant: 1 × 3/4"NPT Stopping plugs included Zones : Zone 1, 2, 21 et 22
