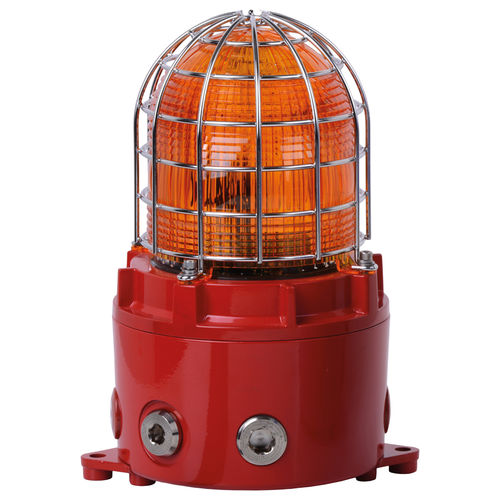

NEW BEACON D1xB2X21 21 Joules
ATEX, IECEx, UL, SIL2 - ZONES 1, 2, 21 et 22
SIL1, SIL2 Route 2H
SIL 2 Route 1H optional (24 Vdc only)
Corrosion-resistant LM6 Marine aluminium housing
Very high visibility with Fresnel effect
Interchangeable optical colour lens
Very easy wiring, optimum accessibility
Protective grille supplied
PE Supplied M20 ATEX - 6.5 to 11.9 mm - Brass
Specification
Product type : BEACON 21J 1250 cd
Source : Xenon Strobe
Energy : 21 J
Eff. Intensity cd : 1250 cd
Enclosure material : Marine grade LM6 aluminium alloy
Lens material : High impact Borosilicate glass
Ingress protection : IP66/67
Voltage :
12Vdc (10-14Vdc), 24V dc (20-28Vdc), 48Vdc (42-54Vdc)
115Vac (110-120Vac), 230Vac (220-240Vac)
Cable entries : Side: 2 × 3/4"NPT & 2 x M20x1.5mm
Pendant: 1 × 3/4"NPT
Stopping plugs included
Zones : Zone 1, 2, 21 et 22
