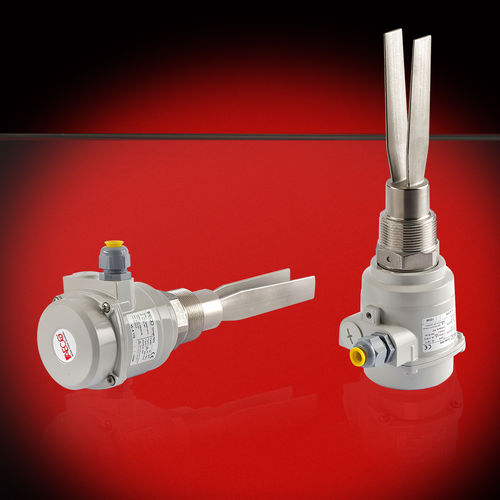

Vibrating level switch VL-A170
for bulk materialsfor the food industryfor silos

vibrating level switch
vibrating level switch
Add to favorites
Compare this product


Characteristics

Technology
vibrating
Medium
for bulk materials
Applications
for the food industry, for silos
Material
stainless steel, plastic
Process temperature

Min.: -40 °C
(-40 °F)

Max.: 150 °C
(302 °F)

Process pressure

16 bar
(232.06 psi)

Description

The vibration level controls are using when it is necessary to ascertain if solid powder or granular substances are at their minimum or maximum depths. They are used for level control in silos for the storage of animal feed, flour, sawdust, sand, cement, etc.; in installations involving the transportation, dosage, storage and processing of plastic materials or other bulk materials with a density greater than 30 g/litre and maximum particle size of 8 mm; in foundries and cement manufacturing facilities. Controllers based on this technique are suitable for use in contact with food. Their operation is based on the activation of a vibrating fork having two rods that are activated by a piezoelectric source. When the vibrating fork comes into contact with the material to be controlled, the oscillation is damped, the resulting vibration reduction is detected electronically and a switching signal is generated.These devices are very robust and are supplied in an aluminium case with AISI 316 stainless steel connections. They resist significant mechanical loads thanks to the limited extension of the vibrating fork, they are simple to use and do not require maintenance.
