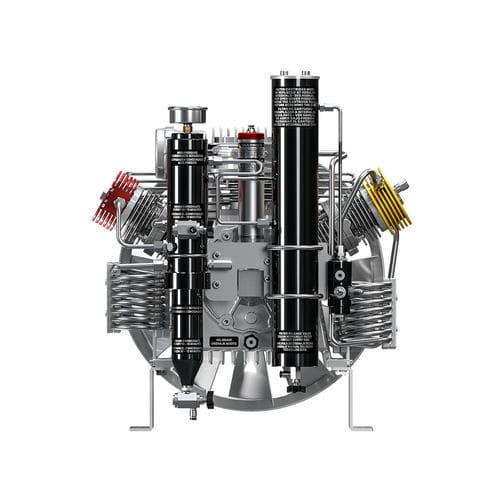

Gas compressor unit Smart HE

pistonsilenthigh-pressure

Overview
The Smart HE is a compact helium-line compressor designed for high-pressure helium compression and breathing/technical gas applications. It integrates a 3-stage high-pressure pumping unit, Maxifilter purification and a silenced cab-style frame to simplify maintenance and transport.

3-stage high pressure pumping unit

• Aluminum monoblock
• Spray lubrication with tang immersed in oil
• Suction filter: 10 µm
• Pipes, fittings and nuts made of AISI 316 stainless steel
• Intermediate condensate separator after the second stage
• High-pressure final condensate separators
• Safety valves after each compression stage
• High heat-dispersion die-cast aluminum cylinders with nicasil barrel coating
• Forged aluminum connecting rods
• Forged steel crankshaft
• Stainless steel second and third stage valves
• Heavy-duty roller bearings
• Tempered steel third stage with 6 segments
• Second and third stages with thrust pads to eliminate lateral forces on the pistons
• Filter system: Maxifilter

Electric motor
Available as single-phase or three-phase electric motor with power in the range 4 to 5.5 kW; the motor transmits motion to the pumping unit through a belt.

Purification System - Maxifilter
The Maxifilter purification system uses a combined molecular sieve and activated carbon filter cartridge to remove moisture, oil vapors and other contaminants. It is installed after the 2nd and 3rd stage compressor separators and before the pressure maintenance valve to provide a primary barrier against moisture. Filtering capacity: 8,600 m³. The system is designed to ensure compressed gas quality suitable for underwater, industrial and emergency breathing applications.

Frame

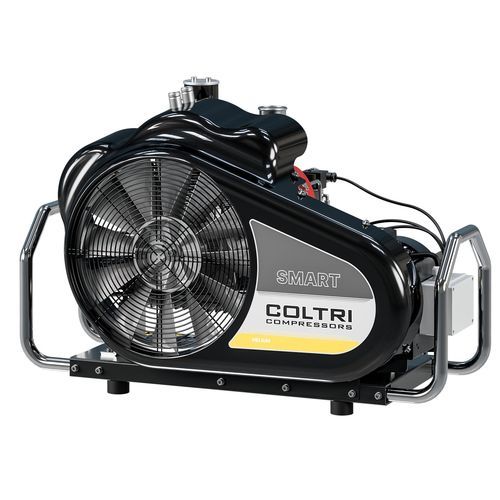

Silenced cab-style chassis designed to facilitate maintenance operations. Constructed of steel with scratch-resistant powder coating in Black RAL 9005. The compressor frame includes carrying handles for transport.

Standard equipment

• Filter system Maxifilter
• Carrying handles
• Frame color Black RAL 9005

Technical characteristics / specifications

• Product line: Helium line
• Commercial name / model: Smart HE
• Pumping unit: 3-stage high pressure pumping unit (aluminum monoblock)
• Lubrication: Spray lubrication (tang immersed in oil)
• Suction filter rating: 10 µm
• Materials: AISI 316 stainless steel pipes/fittings/nuts; die-cast aluminum cylinders with nicasil barrel coating; forged aluminum connecting rods; forged steel crankshaft; stainless steel valves (2nd & 3rd stages)
• Condensate separation: intermediate separator after 2nd stage and high-pressure final condensate separators
• Safety: safety valves after each compression stage
• Bearings: heavy-duty roller bearings
• Third stage: tempered steel with 6 segments; thrust pads on 2nd & 3rd stages to remove lateral piston forces
• Filtration: Maxifilter purification system (molecular sieve + activated carbon), capacity 8,600 m³
• Motor: single-phase or three-phase, 4–5.5 kW
• Frame: silenced cab chassis, steel powder coated Black RAL 9005, carrying handles
• Standard equipment: Maxifilter, carrying handles, Black RAL 9005 frame
