Dust suction unit ABS series

industrialfixed

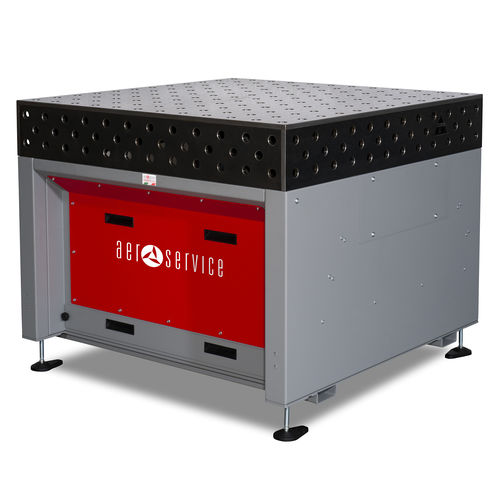

AerBoxSystem is Aerservice Equipments' latest innovation, an exclusive modular solution for the extraction of welding smokes in manual and automated welding applications with cobot. AerBoxSystem can be fitted under the 3D welding worktop, replacing its original table legs, while granting the same stability and load capacity. Thanks to its modular structure, AerBoxSystem can be installed under most of the market’s welding worktops. Extractor fan and filter assembly are integrated inside the bench. AerBoxSystem can be supplied with a PLC digital control and with Ethernet connection for the exchange of data with the Customer’s ERP system (Industry 4.0). Structure The compact concept and the high-quality materials provide for strength and resistance to tear and wear. The adjustable feet can be fixed onto the floor; in alternative levelling castors with integrated truck lock are also available. The dust collector drawer on bottom of the bench is sliding on ball bearings. Airflow regulation and PLC control The PLC provides for the continuous auto-setting of the system. The user can adjust the airflow at any time by a friendly touch screen. The control panel allows the user to turn on and control all functions and components of the system and provides information on any extraction anomaly or in case of clogged filters.
