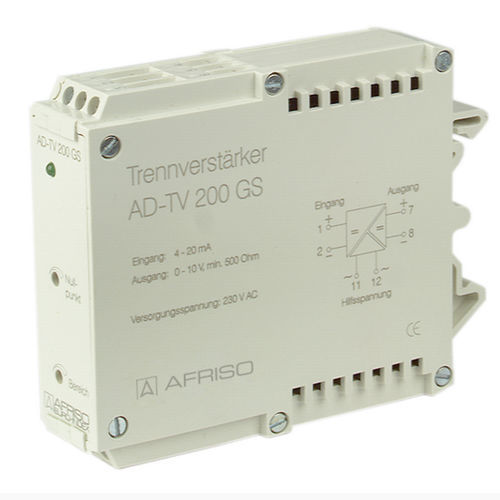

Power amplifier TV 200 GSisolationcurrent outputisolated
Add to favorites
Compare this product
Characteristics
- Type
- power
- Secondary function
- isolation
- Other characteristics
- electronic, DC, voltage output, current output, isolated, DIN rail
- Voltage
Min.: 20 V
Max.: 253 V
- Current
Min.: 4 mA
Max.: 20 mA
Description
The TV 200 GS isolation amplifier is used for galvanic isolation, conversion and amplification of standard output signals (V/mA).
Description
Input and output are galvanically isolated with a high degree of isolation. The integrated high-efficiency electronic power supply unit helps to avoid overheating and allows for high output loads. Offset and gain can be set by means of two potentiometers on the front.
Technical data
Housing
DIN rail housing
W x H x D:
23 x 78 x 103 mm
Output load
Current output:
Max. 500 Ohm
Voltage output:
Min. 1 kOhm
